Recommend

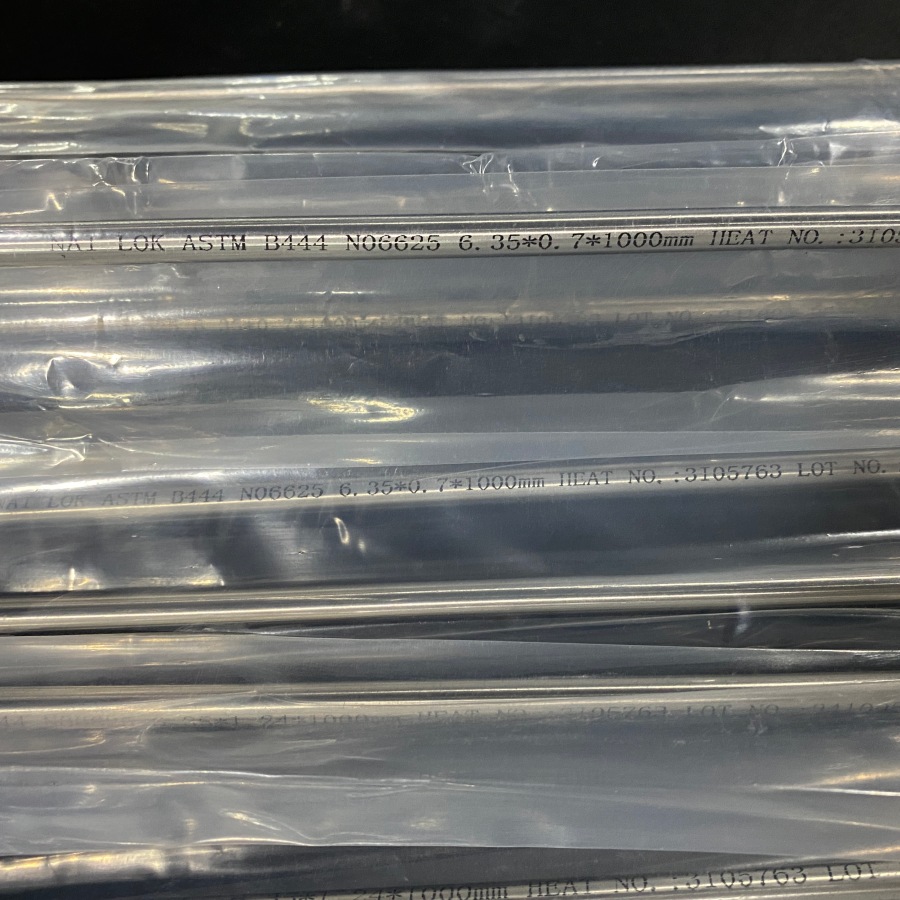

Alloy Pipes 825 Inconel Incoloy Monel Super-Duplex 6mo S31254 Ba Ep Seamless Tube
Material :304/304L 316/316L 317L Hastelloy/HC-276, Special Alloy
Size Tube:1/4"~6" Pipe:8"~32"/6A~800A
Tubes :According to ASTM A269/270,ASME BPE
Pipes :According to ASTM A312,JIS G 3459
Length: 6000MM(Optional:4000mm:6100mm)(+/-10% possible)
Tubes Tolerance:According to ASTM A269/A632
Tube fittings :Pre-material according to ASTM A269/A632/A312
Pipe Fittings: Pre-material according to ASTM A403(pipe)/JIS B 2312/2313
Pipe Tolerance:According to ASTM A312,JIS G 3459
Ends:Tubes and fittings are prepared for orbital welding
Pipes adn fittings(above 8 inch)are prepared for manual weldin
- Technical Parameters
- Main feature
- Operating range
| Material | Stainless Steel 317L |
| Wall Thickness | 0.028inch - 0.083 inch |
| Length | 6000mm(optional:4000mm),(+/-10% possible) |
| Inside Surface Roughness | BA grade:Ra≤0.6μm EP grade:Ra≤0.25μm |
| Length | 3/4/6/10 meters per length |
| Size | 1/8-1 inch |
