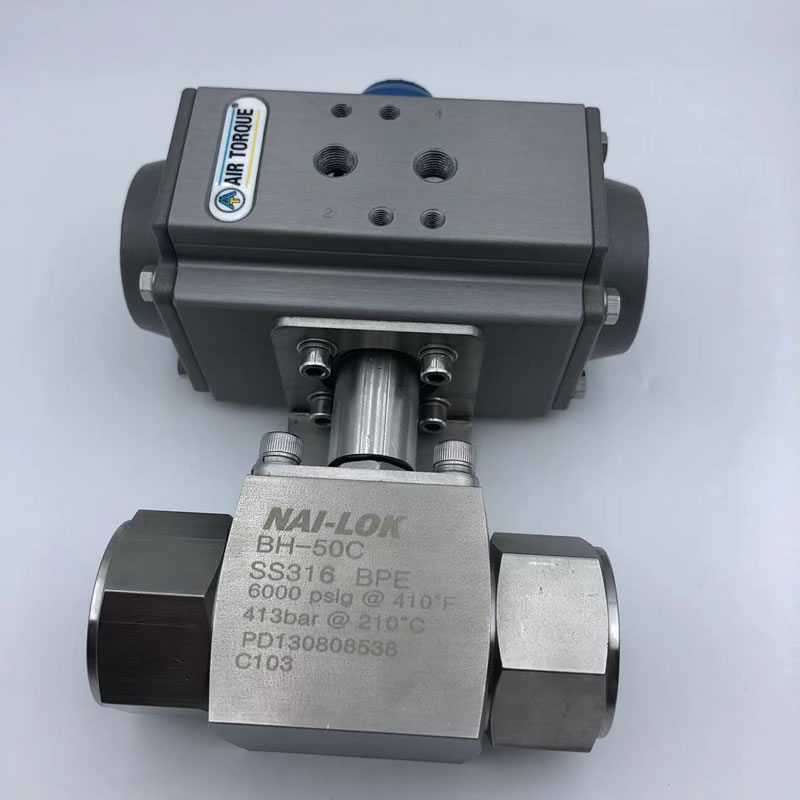

2-Inch High Pressure 413bar Forged Body Pneumatic Actuator Ball Valve Stainless Steel CNG Gas Pipeline Valve
High pressure up to 6,000 psi (413 bar).
Blow out proof design with internally loaded stern.
Handle indicates the flow direction.
Positive stop with a robust stop pin.
High flow rate with maximum orifice
Various end ports including NAI-LOk tube port
Various flow control with side and bottom inlet port on 3-way diverted valves.
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Port Type: | Female NPT/ Welded/OD |
| Size: | 1/4 in. 3/8 in. 1/2 in. 3/4 in. 1 in/2 in |
| Operate: | Manual / pneumatic |
| Pneumatic Size: | 1/2''-2'' |
| Seat: | PTFE |
| Working Pressure: | 6000psig (413 bar) |
| Series | BH Series |
