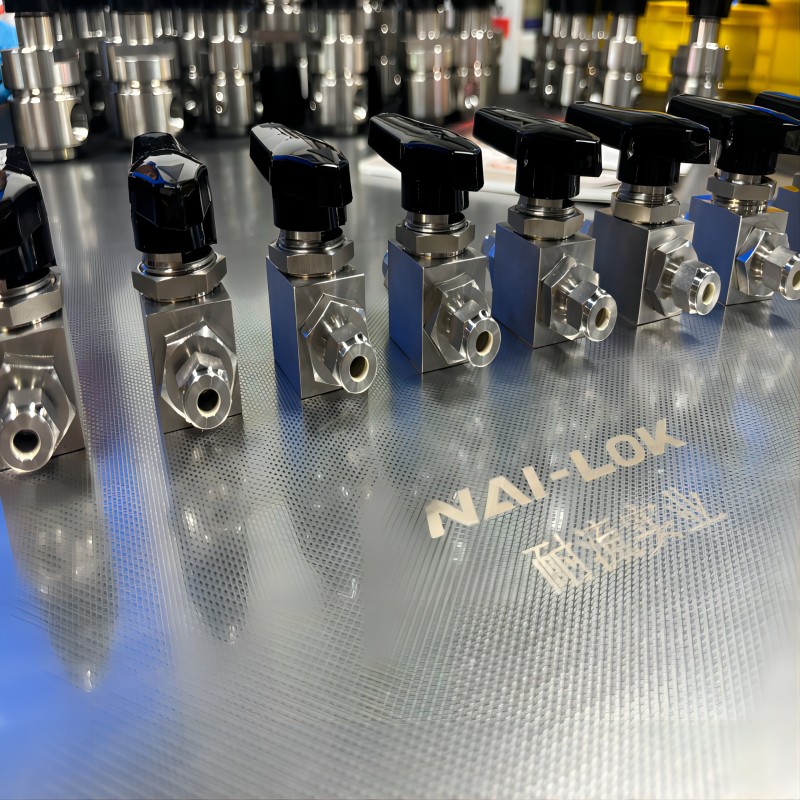

Hastelloy C-22 Ball Valve 3000psi 1/4"OD
Pressure rating up to 6000psig(414bar)
Working temperature from PTFE/PCTFE: -17℃ to -37℃; PEEK:-40℃to 93℃
Panel mountable as standard · Size: NAI-LOK 1/4 to 1 in.
Every valve is 100% factory tested with Nitrogen @ 1000psig(69bar)
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Handle | Black Nylon |
| Port Type: | Female NPT/Male NPT/ NAI-LOK Tube OD |
| Size : | 1/4 in. 3/8 in. 1/2 in. 1in |
| Design: | 2 way straight/ 3 way |
| Seat: | PTFE/ PEEK/PCTFE |
| Working Pressure: | 3000psig/6000psig (414 bar) |
