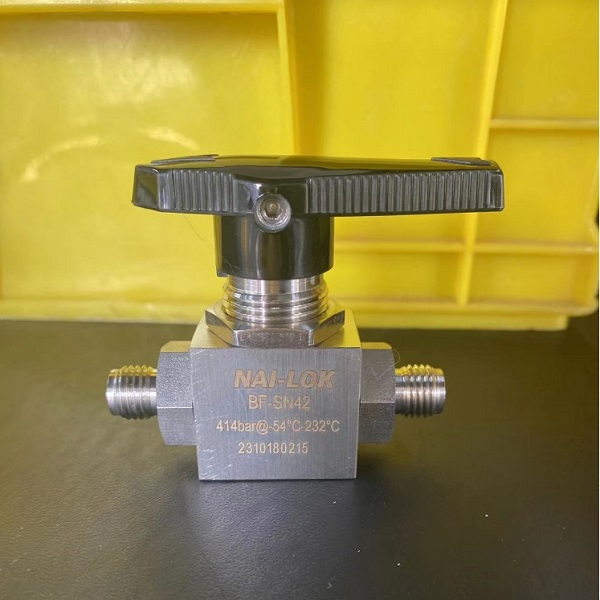

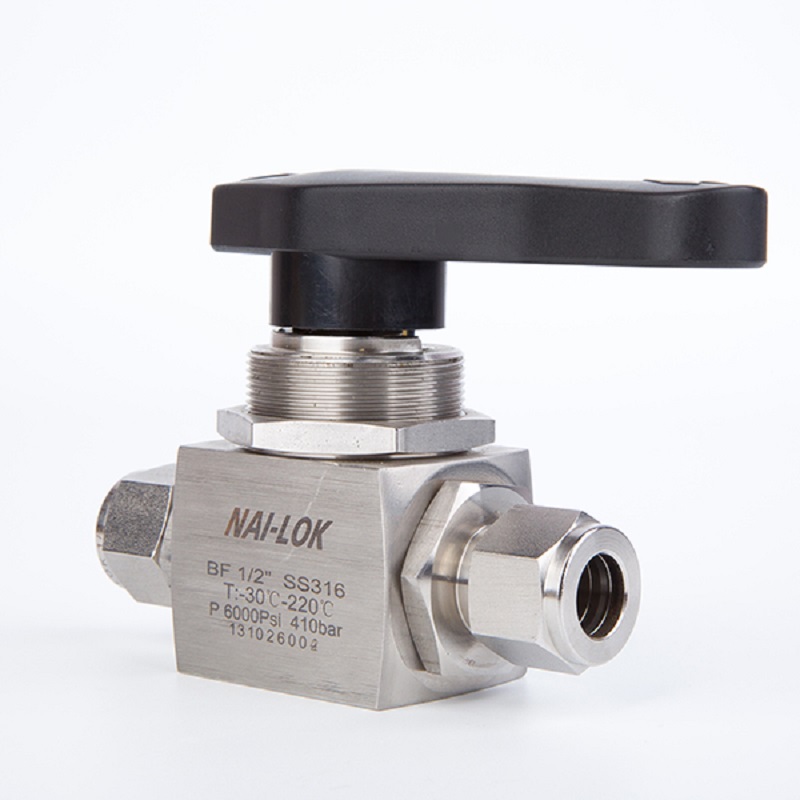

NAI-LOK BF Series 2-Way 1/4 Inch Instrument 6000psi High Pressure Stainless Steel Ball Valve
Pressure rating up to 6,000PSIG(413Bar)
Working temperature from -40°F to 250°F(-40°C to 121°C)
Low operating torque and positive handle stops
Every valve is 100% factory tested with Nitrogen @1000PSI(69bar)
Variety of end connections include reliable NAI-LOK tube fittings,Male/Female NPT
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Handle | Black Nylon |
| Port Type: | Female NPT/ NAILOK tube fitting |
| Size : | 1/8in. 1/4 in. 3/8 in. 1/2 in. 1in. Metric tube 12mm/16mm |
| Design: | 2 way straight/ 3 way |
| Working Pressure: | 6000psig (207 bar) |
| Series | BF Series |
