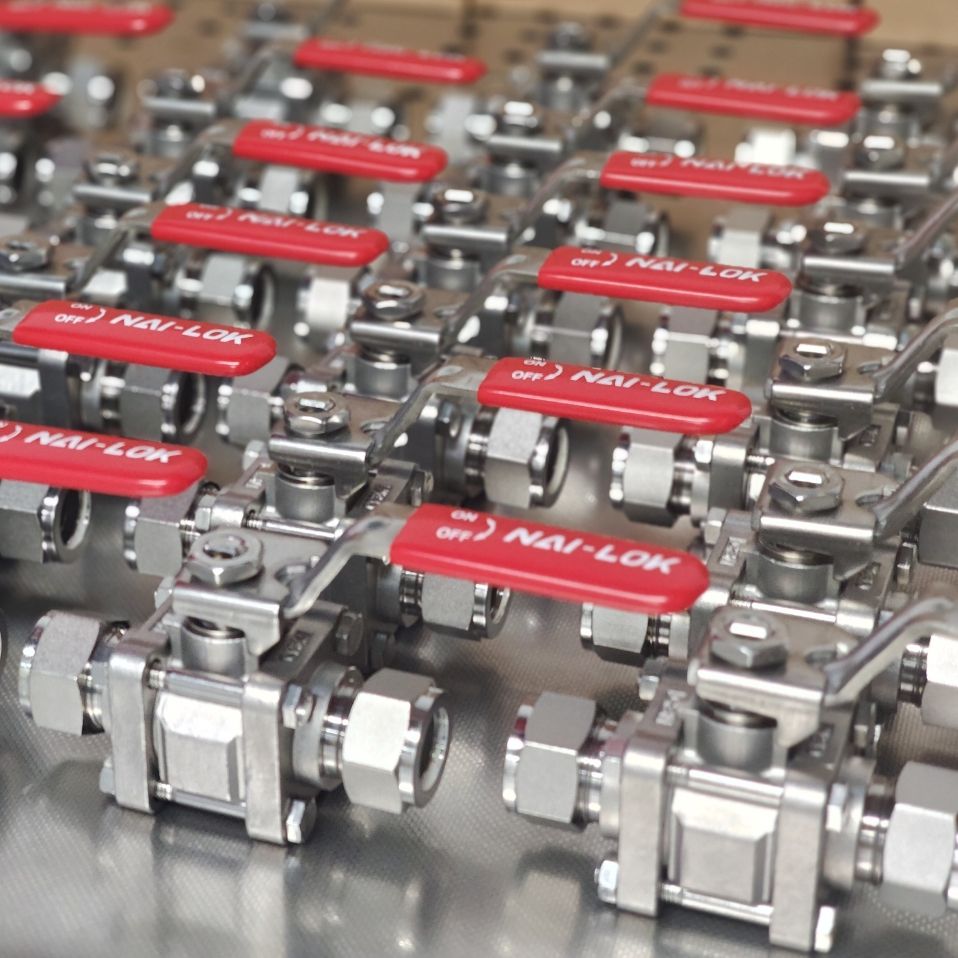

NAI-LOK High Pressure 3-Piece Ball Valve 3000 psi, PTFE Seat, 3/4'' Tube Fitting – BO Series
Precision-engineered 3-piece ball valve with PTFE seat for high-pressure applications.
Rated to 3000 psi, this valve ensures reliable shut-off, corrosion resistance, and long-term performance in instrumentation and process control systems.
3-Piece Stainless Steel Body
Full Port, Blow-out Proof Stem
Leak-tight PTFE Seat
Easy Maintenance Design
- Technical Parameters
- Main feature
- Operating range
| Item | Details |
|---|---|
| Brand | NAI-LOK |
| Series | BO Series |
| Type | 3-Piece High Pressure Ball Valve |
| End Connection | 1/2'' , 3/4'' ,1''Tube Fitting (Compression Type) |
| Body Material | SS316 Stainless Steel (Optional: Alloy 625, 825) |
| Seat Material | PTFE (Optional: PEEK, ) |
| Max Working Pressure | 3000 psi (206 bar) |
| Temperature Range | -20°C to +180°C (-4°F to +356°F) |
| Port Type | Full Port |
| Flow Direction | Bi-Directional |
| Handle Type | Lever Handle |
| Applications | Instrumentation Systems, Gas Distribution, Process Control, Petrochemical, Oil & Gas |
