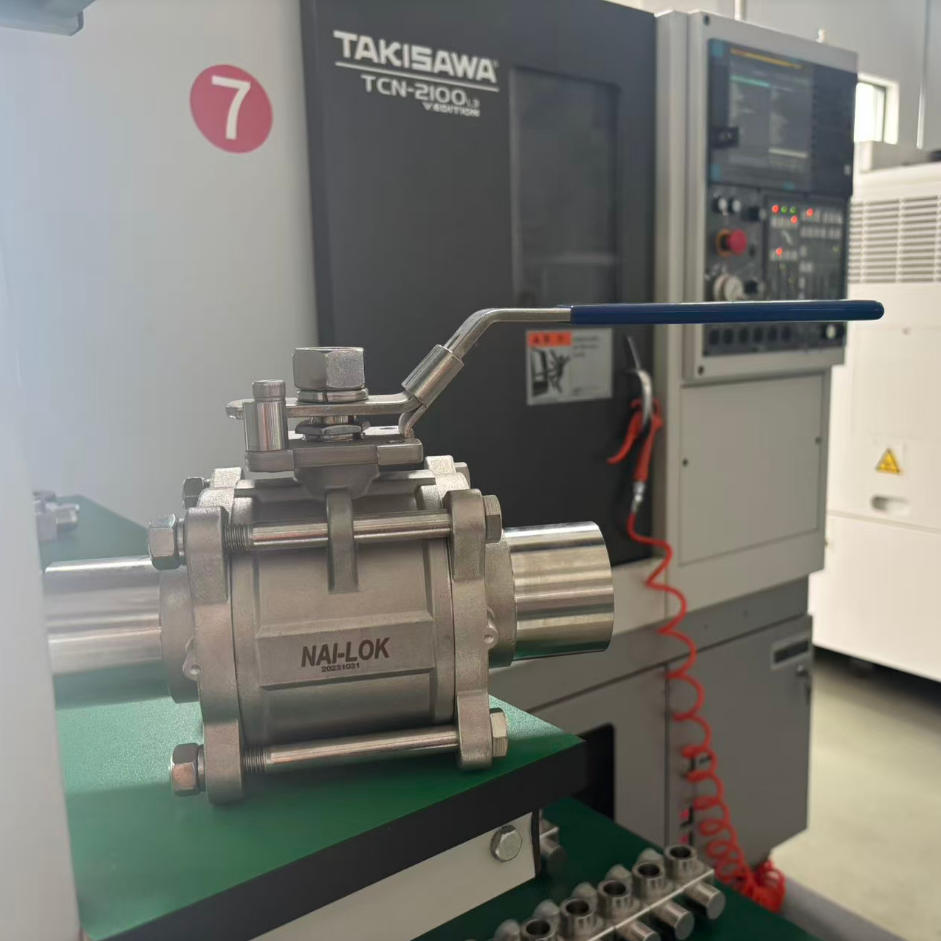

NAI-LOK High Purity Stainless Steel 316L Electropolishing 3 PC Ball Valve 2 inch CF3M 1000WOG
High Purity 3 Piece Ball Valve, designed for semiconductor and clean gas distribution systems
Manufactured from CF3M stainless steel (low carbon 316L) with superior corrosion resistance
Electropolished internal surface for ultra clean flow and reduced particle adhesion
2 inch full port design for high flow capacity with minimal pressure drop
1000 WOG (Water, Oil, Gas) rated for reliable shut-off under demanding conditions
Orbital butt weld or threaded connections available for flexible installation
High performance PTFE / PCTFE seats ensuring chemical compatibility and leak-free operation
Suitable for semiconductor, biotechnology, pharmaceutical and ultra high purity applications
- Technical Parameters
- Main feature
- Operating range
| Parameter | Specification |
|---|---|
| Product Type | 3 PC High Purity Ball Valve |
| Size | 2 Inch |
| Material | CF3M Stainless Steel (316L equivalent, low C) |
| Surface Finish | Electropolished (EP Grade) |
| Working Pressure | 1000 WOG (Water, Oil, Gas) |
| End Connections | Orbital Butt Weld / Threaded / Flanged (optional) |
| Temperature Range | -20°C to +200°C (-4°F to +392°F) |
| Flow Type | Full Port |
| Seat Material | PTFE / PCTFE (customizable) |
| Standards Compliance | ASME B16.34, SEMI F20, ISO 9001 |
| Applications | Semiconductor, Ultra High Purity Gas, Chemical, Biotech, Pharmaceutical |
