Home > Product Center > UHP Products > Bellows valve

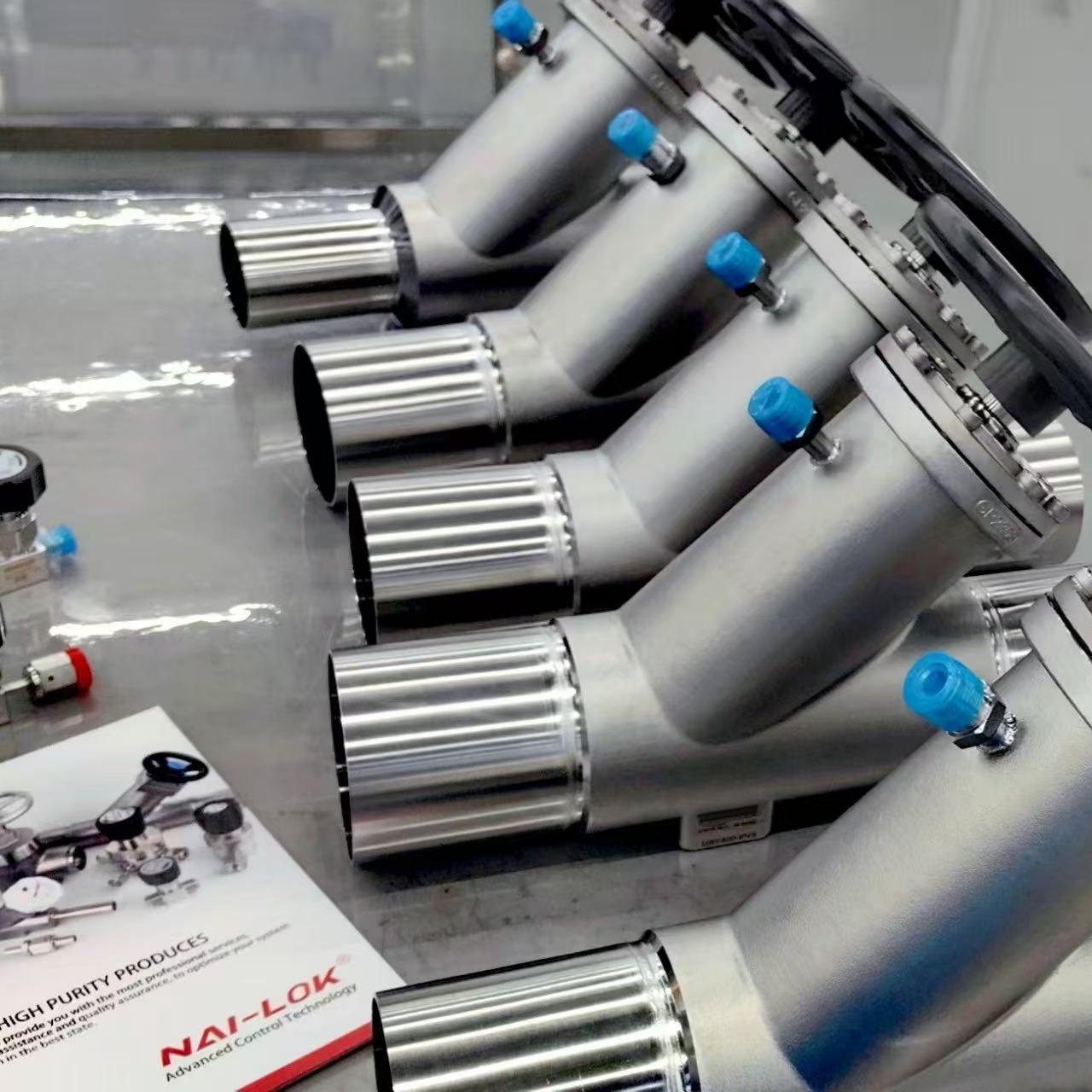

3 Inch Ultra High Purity Bellows Valve for High Purity Gases Delivery Station

Product material: 316L stainless steel, alloy 400, 20, C-276 and titanium

Working pressure: 32MPa (16MPa 22MPa 25MPa 32MPa)

Operating temperature: PTFE packing: - 54 ° C to 232 ° C (- 65 ° F to 450 ° F)

Graphite packing: - 54 ° C to 649 ° C (- 65 ° F to 1200 ° F)

Diameter: DN15 (DN10-DN200)

Port standard: threaded flange JB/T2769

E-mail Get a quote

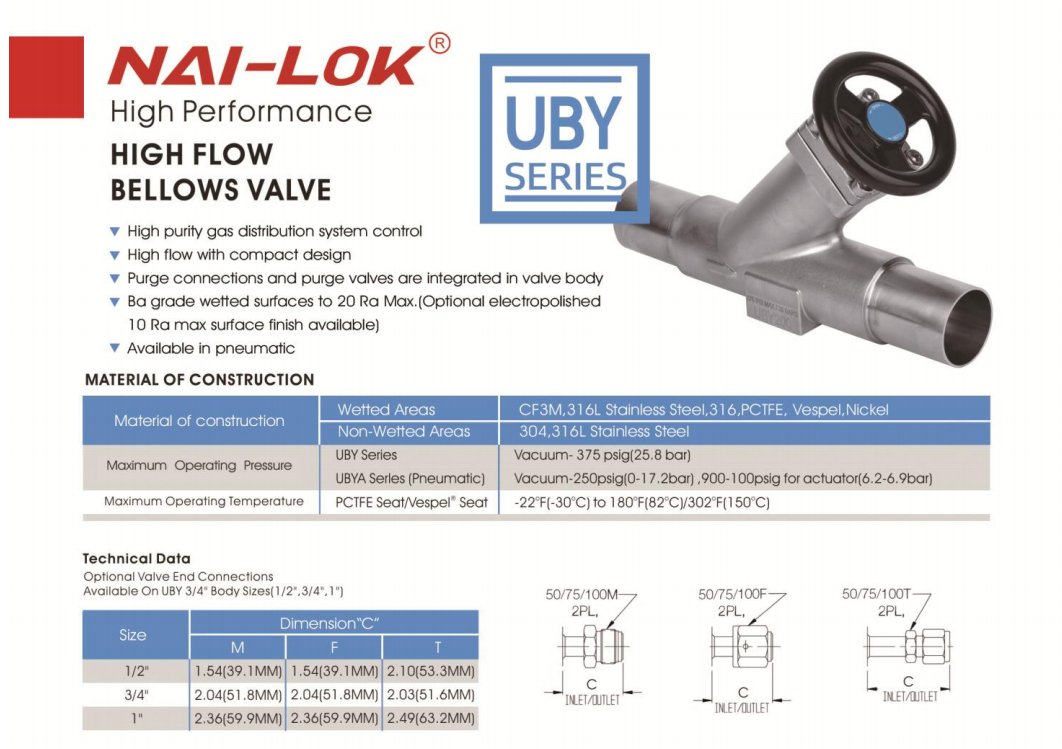

Technical Parameters
Main feature
Operating range

Prev : Y Type 2 Inch EP Grade High Flow High Purity Bellows Valve for Bulk Gas Distribution

Next : 316L UHP Face Seal Male Bellows Valve 3/4
