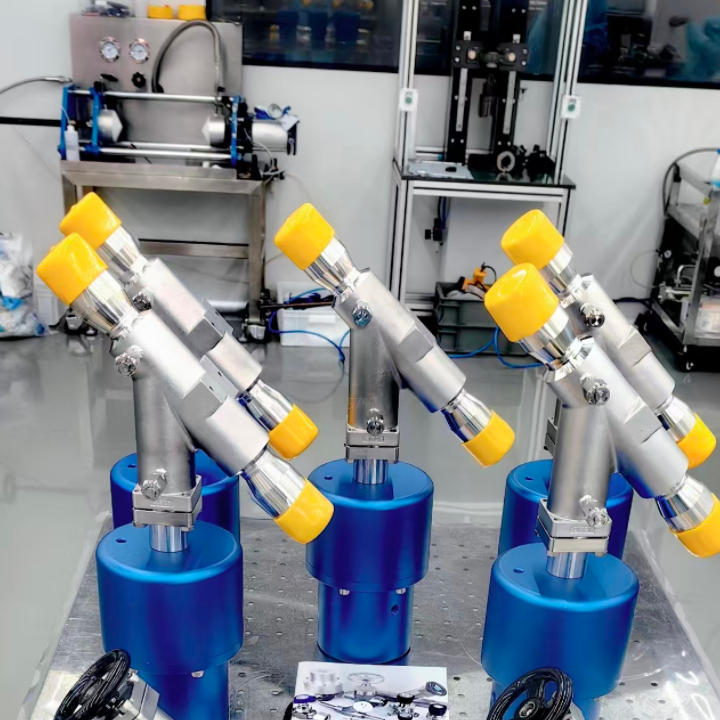

NAI-LOK 2 Inch Pneumatic Y-Type Bellows Valve, Normal Close for High Purity Processes, 225psi
High purity gas distribution system control
High flow with compact design
Purge connections and purge valves are integrated in valve body
Ba grade wetted surface to 20 Ra Max.(Optional electropolished 10 Ra max surface finish available)
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316L Stainless Steel /Hastelloy C276 |
| Port Type: | Face seal female Face seal male |
| Size: | 1/2 in. To 6 in. 15A to 250A |
| Grade: | BA /EP |
| Purge Valve Size: | 1/4 |
| Actuator Configuration | NO=Normal Open NC=Normal Close DA=Dual Acting |
| Series | UBY-P Series |
