Home > Product Center > UHP Products > Bellows valve

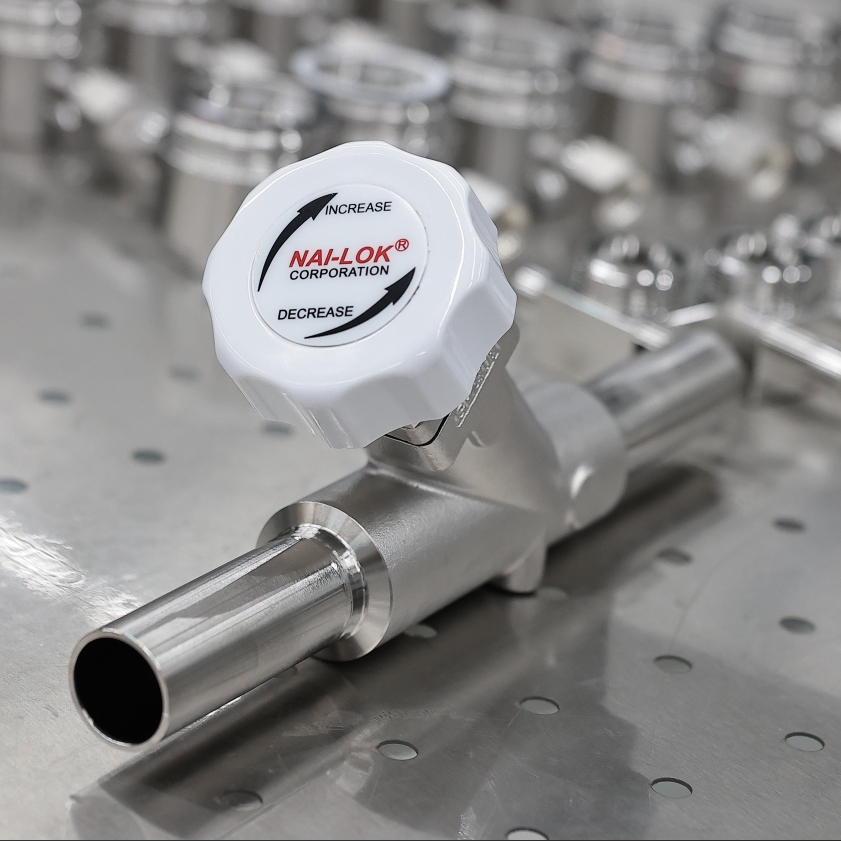

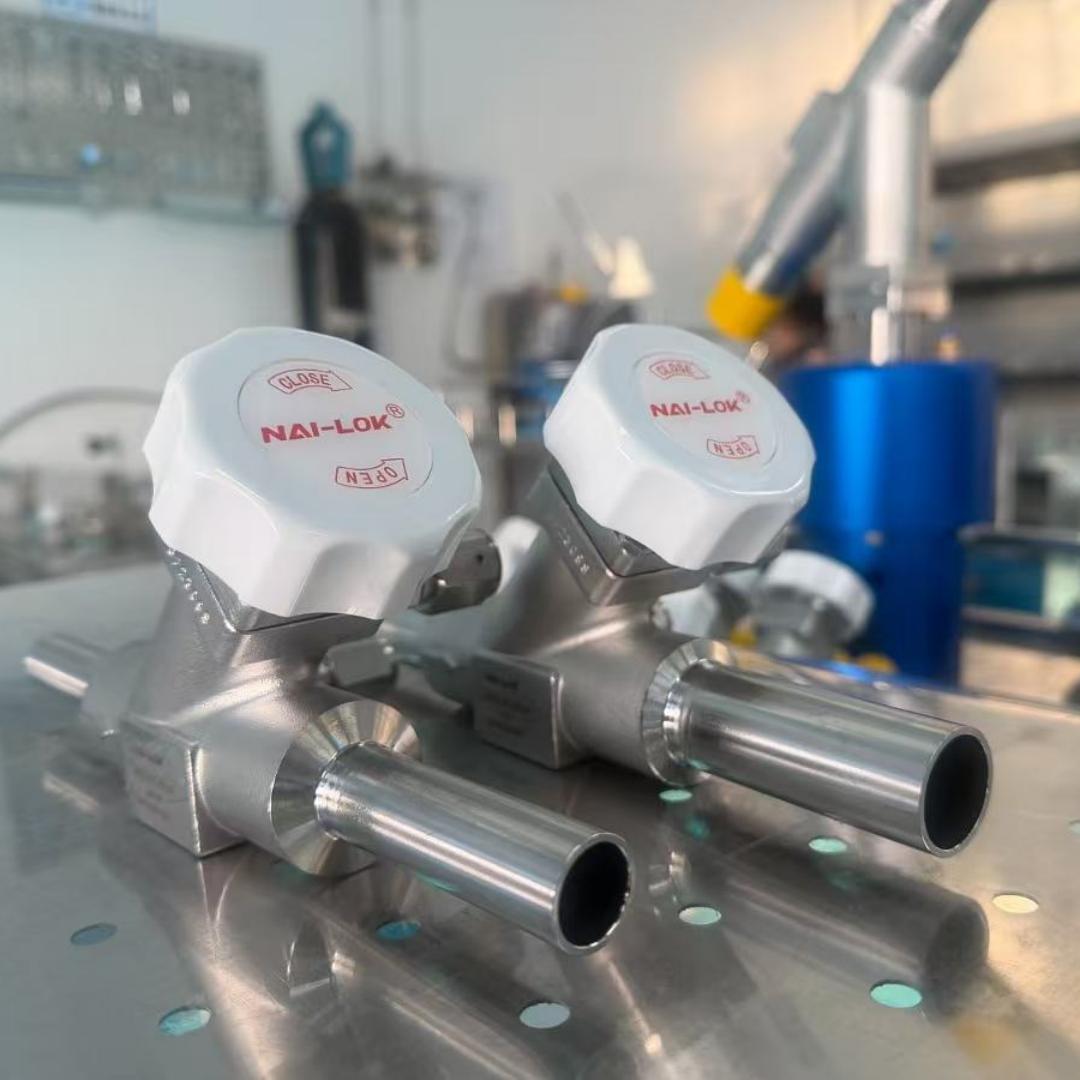

High-purity gas distribution system control valve bellows type

1. High purity gas distrubution system control

2. Hig flow with compact design

3. Pure connections and purge valves are integrated in valve body

4. Be grade wetted surfaces to 20 Ra Max.(Optional electropolished 10 Ra max surface finish available)

5. Available in pneumatic

E-mail Get a quote

Technical Parameters
Main feature
Operating range

Body Material:	316L Stainless Steel /Alloy C276
Port Type:	Face seal female Face seal male
Size:	1/2 in. to 4 in. 15A to 40A
Operating Pressure:	375 psig (25.8bar)
Grade	BA / EP (Electro polishing finish)
Series	UBY Series
Operation:	Manua/Pneumatic actuator

Prev : 1 Inch Butt Weld Bellows Valve with Purge Port Face Seal 1/2

Next : Y Type 2 Inch EP Grade High Flow High Purity Bellows Valve for Bulk Gas Distribution
