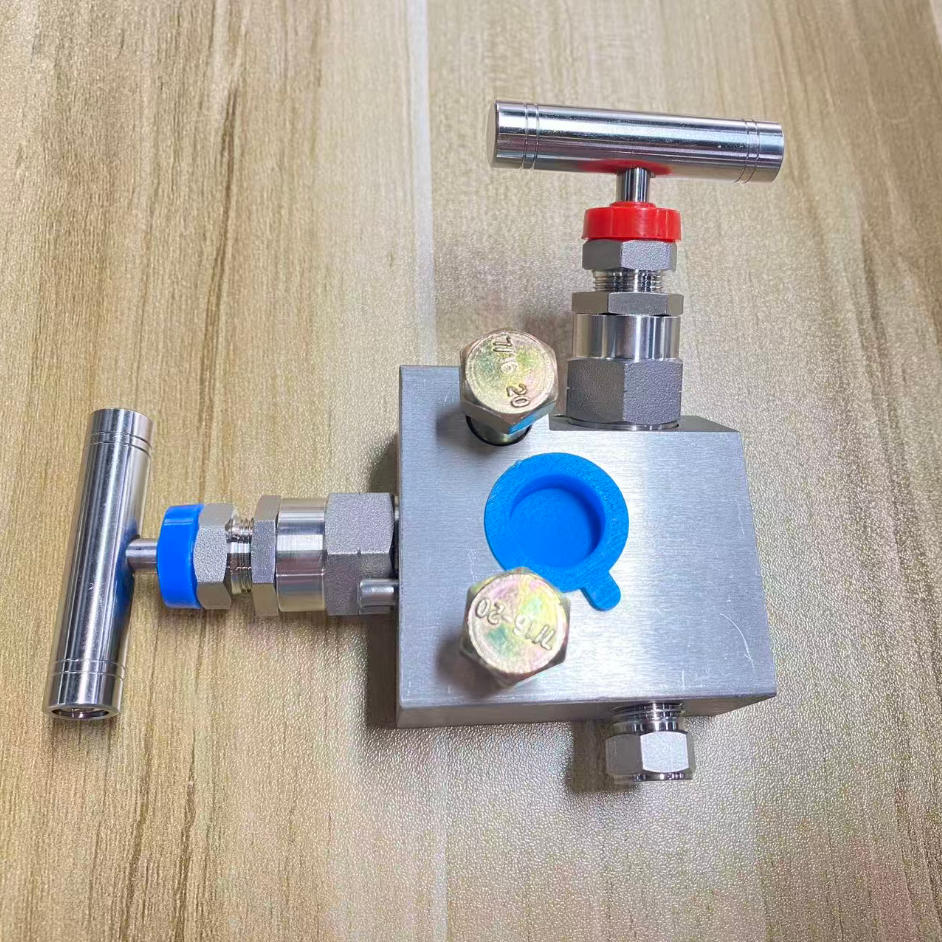

2 Way Manifold Valve Female to Flange with Vent Port Plug | Stainless Steel Instrument Valve for Pressure Gauge and Transmitter Isolation
Compact 2-way manifold design for pressure transmitter isolation
Female-to-Female threaded connections for easy installation
Integrated vent/bleed port with plug for safe pressure release
High-quality SS316 stainless steel construction for corrosion resistance
T-bar handle for smooth operation and positive shut-off
Leak-tight metal-to-metal sealing, suitable for instrumentation applications
Designed for differential pressure transmitter isolation and calibration
- Technical Parameters
- Main feature
- Operating range
| Parameter | Specification |
|---|---|
| Type | 2 Way Manifold Valve (Female-Flange) with Vent Port Plug |
| Material | SS316 Stainless Steel (other alloys available on request) |
| Connection Size | 1/4" NPT Female ; 1/2" NPT Female ; 3/4" NPT Female |
| Vent Port | 1/4" NPT Female with Plug |
| Working Pressure | Up to 6000 psi (414 bar) |
| Temperature Range | -20°C to +230°C (-4°F to +446°F) |
| Sealing Type | Metal-to-metal seat |
| Handle Type | T-Bar handle |
| Applications | Differential Pressure Transmitters, Instrumentation Systems, Calibration & Isolation |
