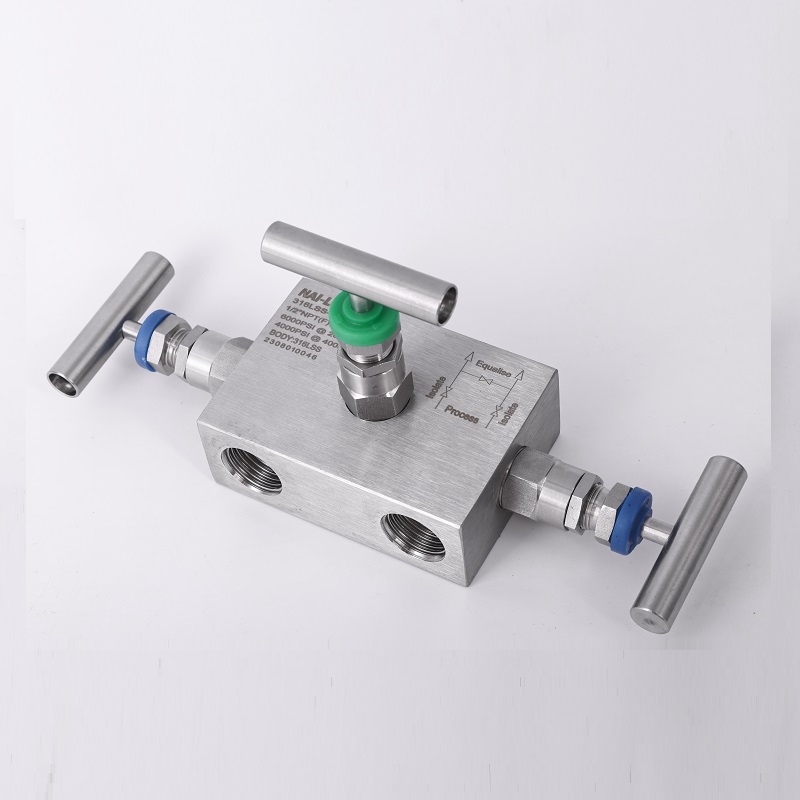

6000psi Forged Stainless Steel 3-Way Manifold Valve – 1/2" Female NPT High Pressure
1.Press up to 6000psig (414bar) for standard stainless steel body
2.Temperature for PTFE packing from -65°F to 450°F (-54°C to 232°C)
Temperature for Grafoil packing from -65°F to 1200°F (-54°C to 649°C)
3.Packing below stem thread isolates the thread lubricant from the media
4.Back seating design protects the packing in fully open position
5.Non-rotating stem tip
6.100% factory tested
- Technical Parameters
- Main feature
- Operating range
| Model: | 3-Way Manifold Valve |
| Material: | Forged Stainless Steel 316 for superior strength and corrosion resistance. |
| Pressure Rating: | 6000psi– Suitable for high-pressure applications. |
| Size: | 1/2" Female NPTthread for easy connection to instrumentation systems. |
| Valve Type: | 2-way/3-way/5-way Manifold Valve for precise flow control and isolation in high-pressure systems. |
| End Connection: | 1/2" Female NPT thread, providing a secure and leak-tight connection |
| Temperature Range: | Typically-196°C to 600°C, depending on materials and seals. |
| Applications: | Ideal for oil & gas,chemical processing,petrochemical, and marine industries |
| Functionality: | Providesflow control,isolation, andventingin high-pressure systems. |
| Features: | Compact design,easy installation, high-pressure durability, leak-tight performance. |
