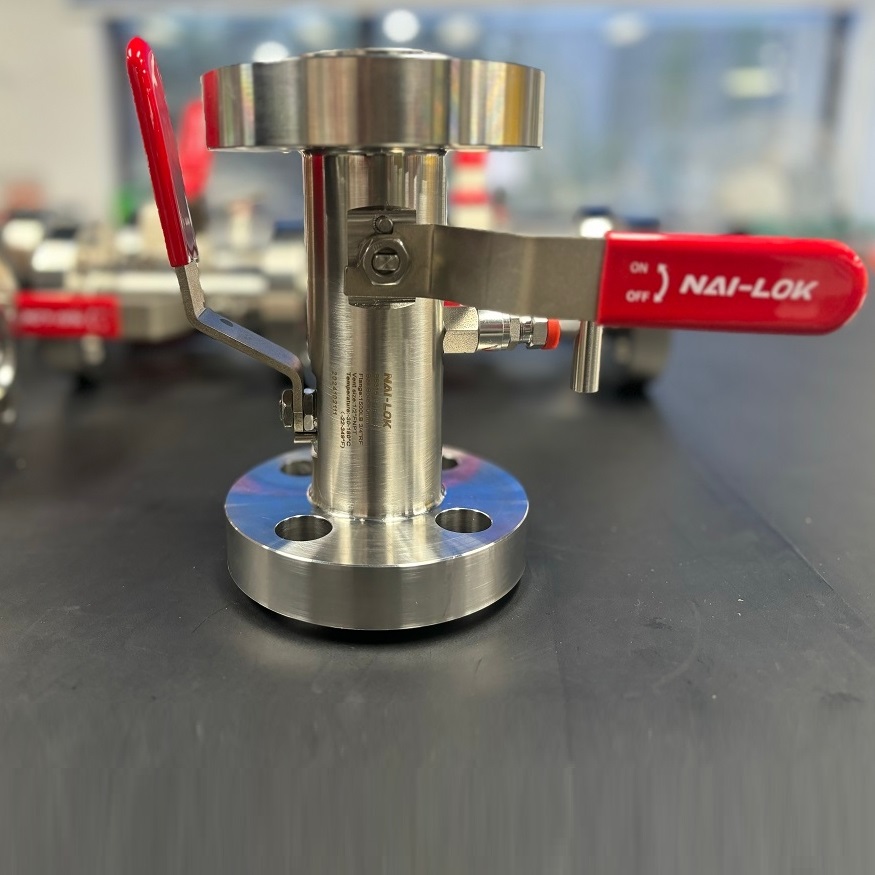

Super-Duplex 2507 Instrumentation DBB Valve Class 2500 Double Block and Bleed Ball Valve Type
Product Features & Specifications:
Flanged Inlet Connections: Available in1/2" to 2" sizesconforming toANSI B16.5 standards. Rated fromClass 150toClass 2500, offering a wide range of pressure capabilities.
Thread Outlet:1/2"-1" FNPTthread outlet toANSI/ASME Standard, depending on bore size, providing flexibility for different installations.
Vent Connection:1/2" FNPT thread, ensuring reliable venting capabilities in high-pressure systems.
Standard Material: Constructed fromstainless steel ASTM A182 F316/F316Lfor superiorcorrosion resistanceandhigh-temperature performance.
Optional Materials: Can be customized with materials like316/316L, 304/304L, 317/317L, 321, 2205,2507, 904L, Alloy 400, Alloy 625, Alloy 825,C22,C276,B2,B3providing versatility for extreme environments.
Flange Styles: Designed withraised facetoring-type joint flange styles, ensuring a secure and leak-tight seal in demanding applications.
Forged One-Piece Construction:One-piece forged flangeensures structural integrity and durability under pressure.
Fire-Safe Design: The valve is designed with fire-safe features, ensuringreliabilityandsafetyin high-risk environments.
- Technical Parameters
- Main feature
- Operating range
| Model: | Super-Duplex 2507 Instrumentation SBB/DBB Flange Valve |
| Material: | F316 Stainless Steel Body for excellent corrosion resistance and strength in demanding environments. |
| Valve Type: | Single/Double Block & Bleed (SBB/DBB) Manifold Valve for safe isolation and venting. |
| Pressure Rating: | Class 2500– Suitable for high-pressureoil & gasapplications. |
| Flange Connection: | Flanged Ends to ASME B16.5 standards, providing a secure and leak-tight connection |
| Size Range: | Available in standard sizes forflangeconnections, typically1/2" to 2". |
| Applications: | Primarily used in oil & gas,petrochemical, and chemical processing industries. |
| Temperature Range: | Typically-196°C to 600°C, depending on the materials and seals used. |
| Features: | Leak-tight performance,high-strength design,easy installation, and compact form factor. |
| Seal Type: | Typically designed with metal-seated or soft-seated options for optimal sealing performance. |
| Durability: | Super-Duplex 2507 material ensures superior resistance to corrosion and high strength in extreme conditions. |
