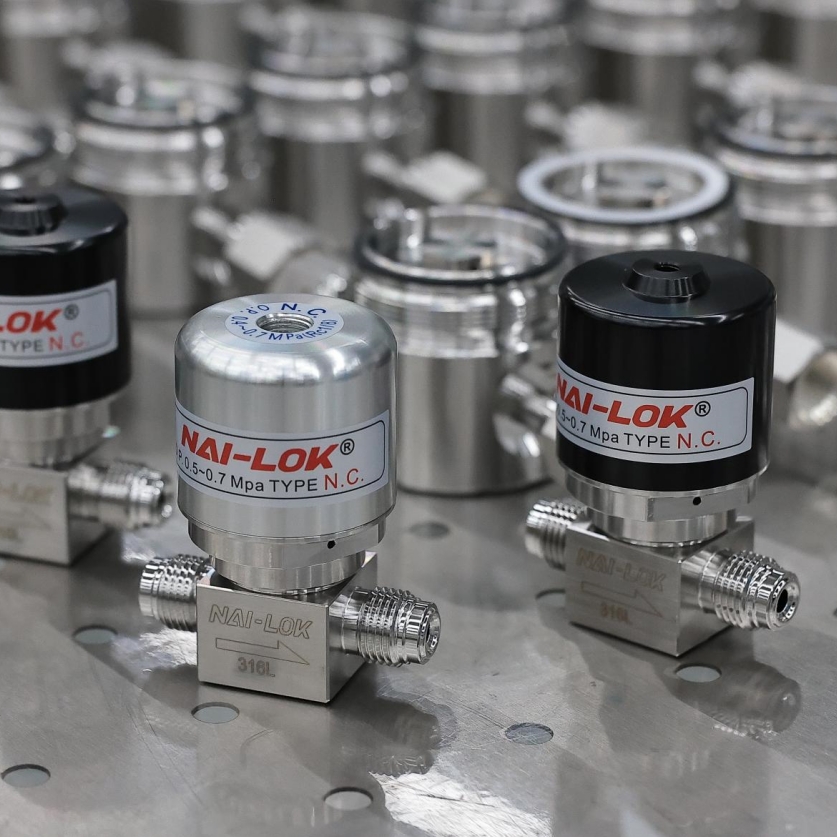

NAI-LOK High and Low Pressure Gas Valve 1/4'' Metal Face Seal Vacuum System Diaphragm Valve For Semiconductor
1. Visible indicator handle
2. Compact designed body with minimal dead space
3. Excellent finish level of wetted areas with NAI-LOK’s own electro polish precess
4. Specification 316L SS material for ultra-pure,flammable,or toxic fluid lines in semiconductor manufacturing equipment and facilities.
5. All valves are helium leak tested.
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316L Stainless Steel |
| Port Type: | Face seal female Face seal male Tube weld stub available |
| Size: | 1/4 in/1/2 in/3/4 in |
| Operating Pressure: | 145psig (1 Mpa);2900psi(20.5 Mpa) |
| Diaphragm | Nickel-cobalt alloy |
| Series | UDM/UDBSeries |
