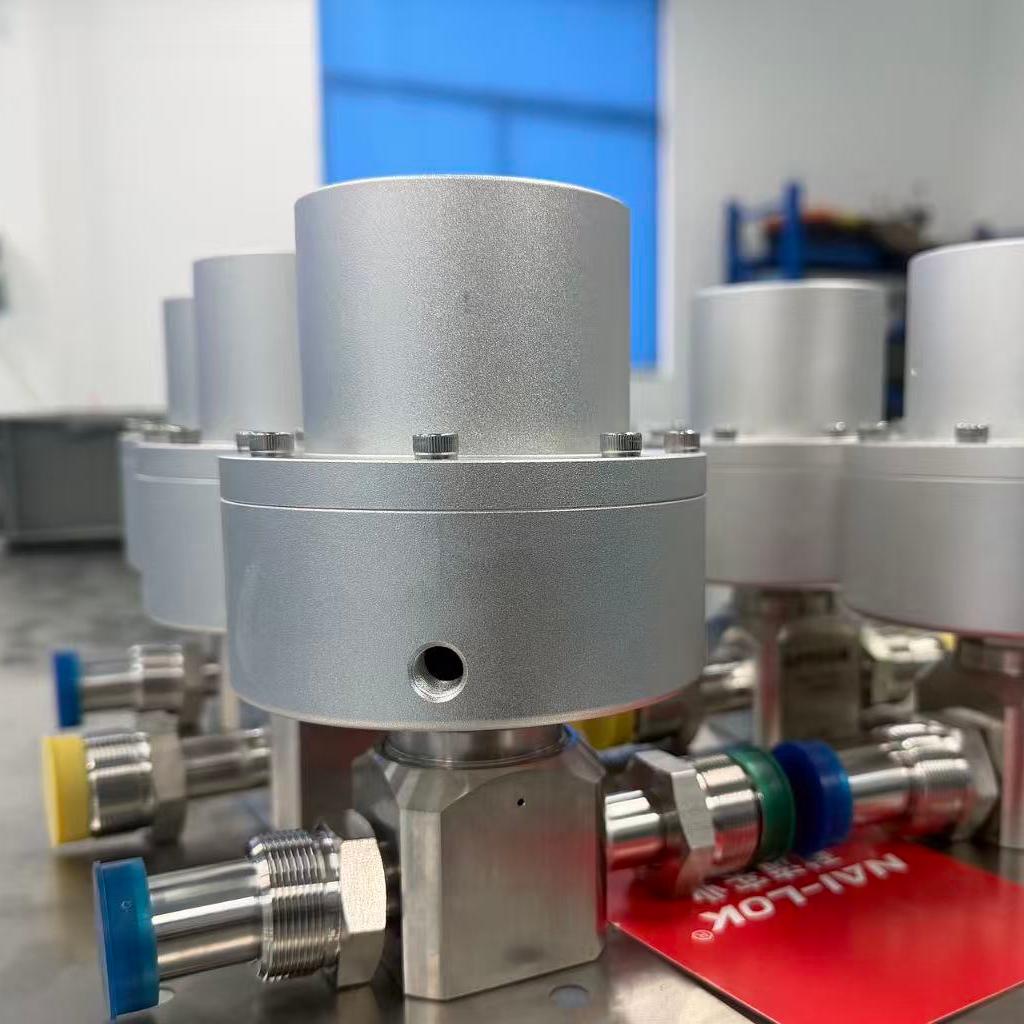

UHP Face Seal Male Diaphragm Valve 3/4 with Pneumatic Actuating Operation
1. Visible indicator handle
2. Compact designed body with minimal dead space
3. Excellent finish level of wetted areas with NAI-LOK’s own electro polish precess
4. Specification 316L SS material for ultra-pure,flammable,or toxic fluid lines in semiconductor manufacturing equipment and facilities.
5. Pneumatic actuating operation
6. All valves are helium leak tested.
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316L Stainless Steel |
| Port Type: | Face seal female Face seal male Tube weld stub available |
| Size: | 3/4 Face Seam (Male / Female ) |
| Operating Pressure: | 435psig |
| Actuator Configuration | NO=Normal Open NC=Normal Close |
| Series | UDH Series |
