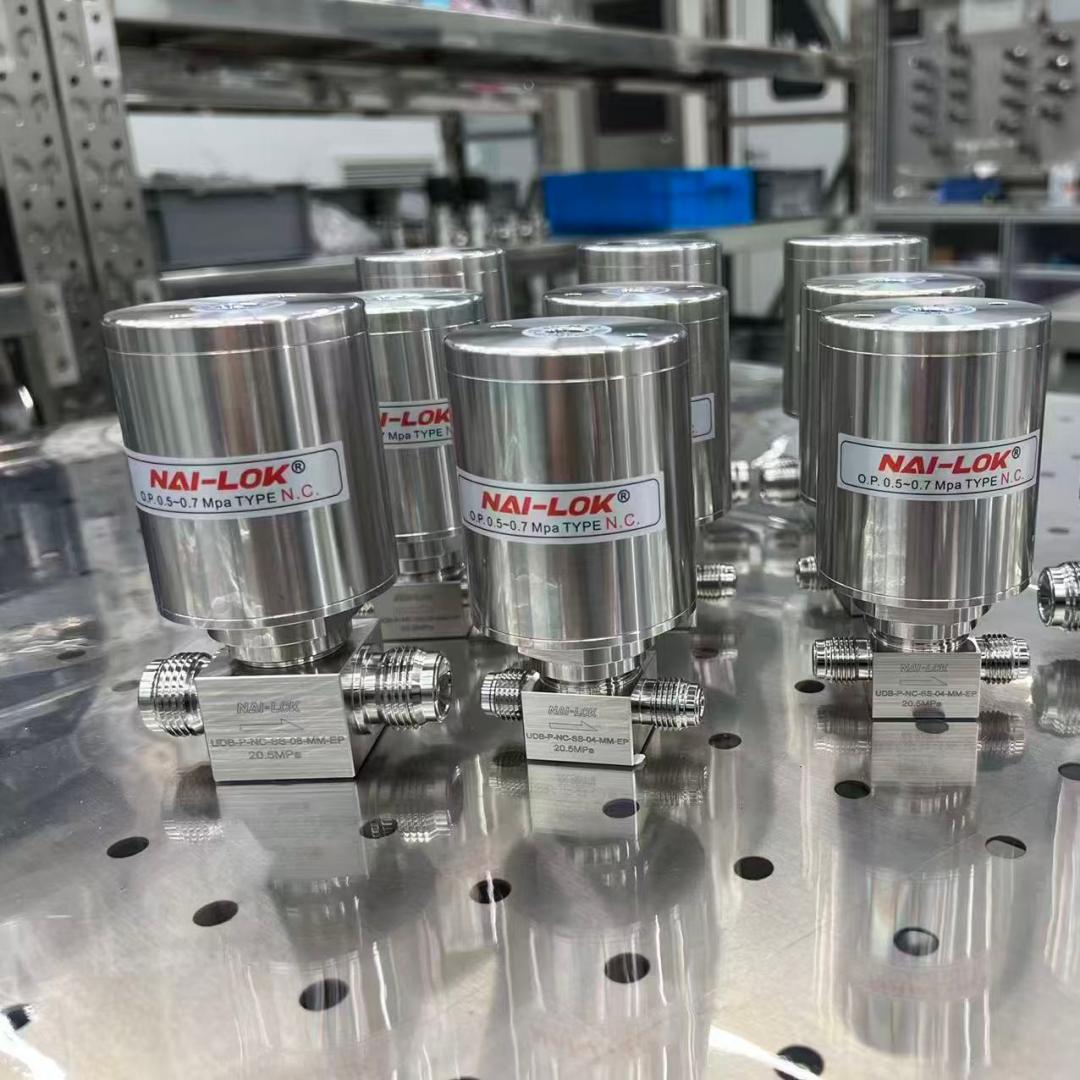

UHP High Pressure Diaphragm Valve 20.5 MPA with Pneumatic Actuating SS316L
1. The simplified actuator design makes it more compact
2. Excellent finish level of wetted areas with NAI-LOK’s own electro polish precess
3. Specification 316L SS material for ultra-pure,flammable,or toxic fluid lines in semiconductor manufacturing equipment and facilities.
4. All valves are helium leak tested.
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316L Stainless Steel |
| Port Type: | Face seal female Face seal male Tube weld stub available |
| Size: | 1/4 in./1/2in/3/4 in |
| Operating Pressure: | 2900psig (20.5Mpa) |
| Diaphragm | Nickel-cobalt alloy |
| Actuator Configuration | NO=Normal Open NC=Normal Close |
| Series | UDM-P Series |
