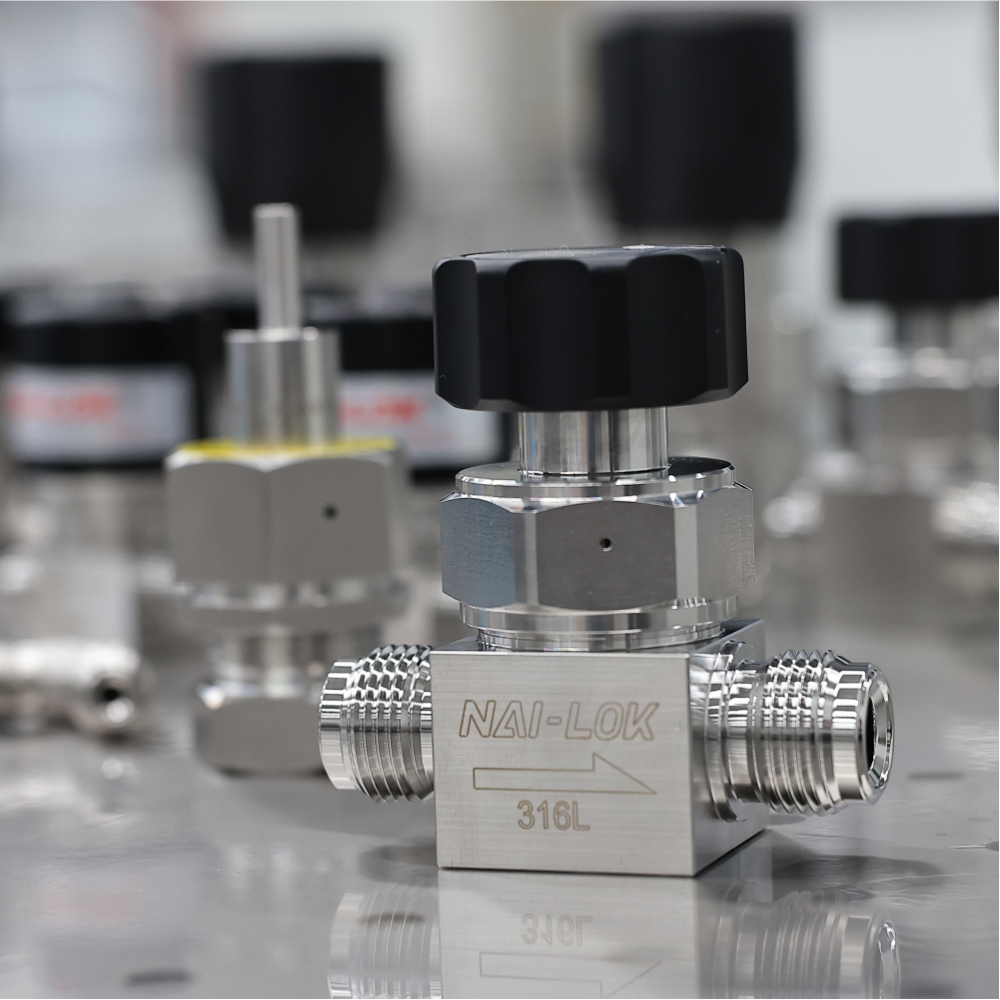

UHP Ultra High Purity Low Pressure 1 MPA 1/2 Male Face Seal Diaphragm Valve
1. Visible indicator handle
2. Compact designed body with minimal dead space
3. Excellent finish level of wetted areas with NAILOK's own electro polish process
4. Specification 316L SS material for ultra-pure,flammable,or toxic fluid lines in semiconductor manufacturing equipment and facilities.
5. Pneumatic actuating operation
6. All valves are helium leak tested.
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316L Stainless Steel |
| Port Type: | Face seal female Face seal male Tube weld stub available |
| Size: | 1/2in. |
| Operating Pressure: | 145psig (1Mpa) |
| Diaphragm | Nickel-cobalt alloy |
| Actuator Configuration | NO=Normal Open NC=Normal Close |
| Series | UDM Series |
