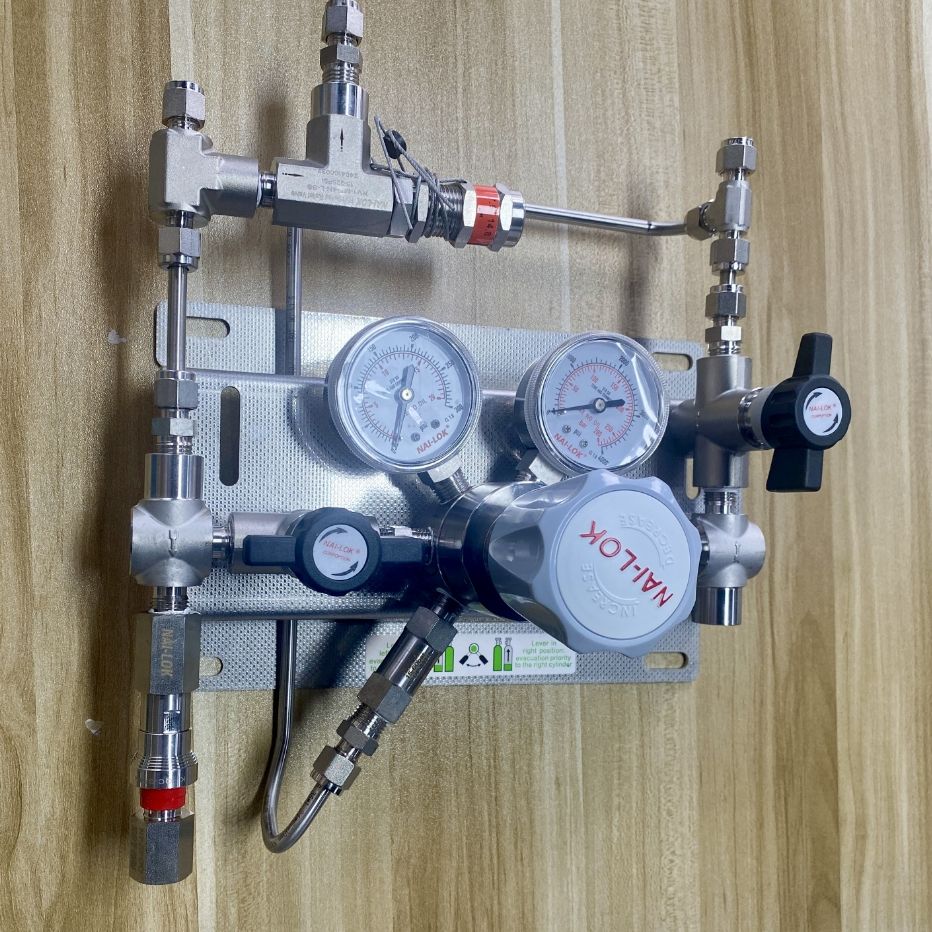

Manual Changeover Gas Supply Manifold Panel System with Relief Valve and Diaphragm Valve for Dual Cylinder High Purity Gas Distribution
Manual Changeover Design– Enables seamless switch between dual cylinders to ensure continuous gas supply.
High Purity Construction– Designed for high-purity gas applications such as laboratory, semiconductor, and analytical systems.
Integrated Relief Valve– Provides overpressure protection to ensure operational safety.
Stainless Steel Diaphragm Valves– Ensures excellent sealing performance and corrosion resistance.
Wall-Mounted Panel– Compact structure for space-saving and easy installation.
Compatible with Various Gases– Suitable for N₂, O₂, H₂, Ar, CO₂, He, and specialty gases.
Dual Pressure Gauges– Allows easy monitoring of inlet and outlet pressures.
Electropolished Stainless Steel Tubing– Clean internal surfaces suitable for ultra-clean gas delivery.
- Technical Parameters
- Main feature
- Operating range
Product Name | NAILOK RMP Series Manual Changeover System |
Maximun Inlet Pressure | 3500 psig(241 bar) |
Outlet Pressure | 0-25psig/ 0-60psig/ 0-100psig/ 0-160psig/ 0-250psig |
Design Proof Pressure | 150% maximum rated pressure |
Leakage | Internal: Bubble-tight External:Design ro meet≤2×10-8atm cc/sec He |
Operating Temperature | -40ºF to 165ºF/-40ºC to 70ºC |
SuitableGases | N₂,O₂,Ar,CO₂,He,H₂,CH₄,Mixed Gas etc. |
| Mounting Type | Wall-Mounted Panel |
