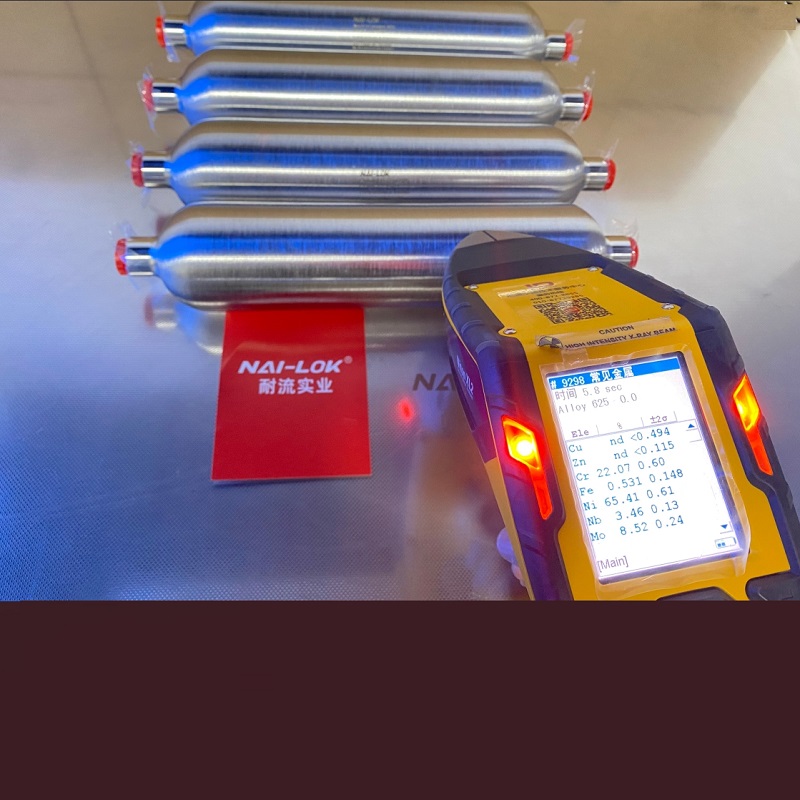

NAI LOK Inconel 625 & Inconel 825 Sampling Cylinder 50ml to 1000ml for Sampling System

NAI LOK Inconel 625 & Inconel 825 Sampling Cylinder 50ml to 1000ml for Sampling System

Working pressure 1800psi-5000psig(344 bar)
Material 304L, 316L stainless steel , Hastelloy, Monel upon request
Body made of seamless tubing provides consistent wall thickness size and capacity
All double-ended cylinders are hydrostatically tested to at least 5/3 times the working pressure

E-mail Get a quote

Technical Parameters
Main feature
Operating range

Pressure	3000psi(207 bar);5000psi(345 bar)
Temperature	-53~+50°C
Material	stainless steel 316,316L, alloy, monel
Medium	Sampling, storage and transportation of liquefied petroleum gas, propylene, butadiene and other gases and liquids which meet the conditions
Volume	50、100、250、300、500、1000、
