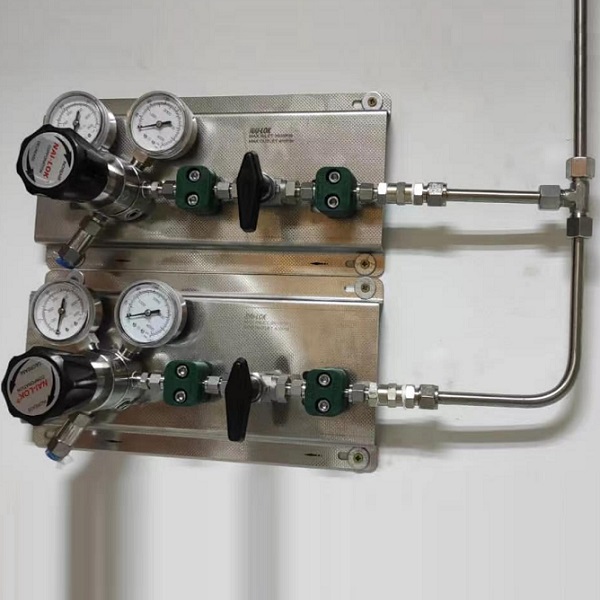

NAILOK 6 Ports Regulator With Relief Valve Assemble on Panel

NAILOK 6 Ports Regulator With Relief Valve Assemble on Panel


Good protection against burst and corrosion due to diaphragm material stainless steel

6 ports flexible configuration

Panel mounting nut option

Available in chrome plated brass, alloy.

Purity max.6.0

Stable outlet pressure

Operating Temperature:-40ºF to 165ºF/-40ºC to 74ºC


  • Technical Parameters
  • Main feature
  • Operating range
Maximun Inlet Pressure
3500 psig(241 bar)
Outlet Pressure
200psig(13.8 bar)
Design Proof Pressure
150% maximum rated pressure
Leakage
Internal: Bubble-tight
External:Design ro meet≤2×10-8atm cc/sec He
Operating Temperature
-40ºF to 165ºF/-40ºC to 74ºC
Flow Capactiy
3500 psig/241 bar Inlet:CV=0.06
400 psig/27.6 bar Inlet:CV=0.15
Maximum Operating Torque
30 in-lbs/3.4N•m
