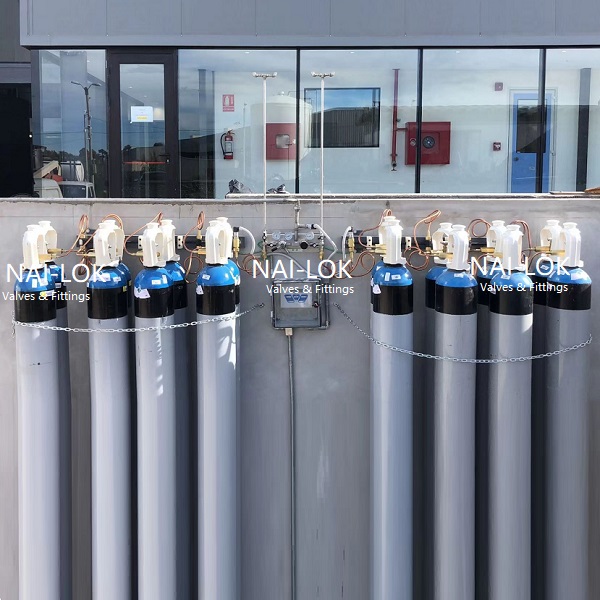

NAILOK Semi-Automatic Switchover Manifold System PRM series

NAILOK Semi-Automatic Switchover Manifold System PRM series


Single stage.

For purity, inert, reactive, flammable and oxidizing gas and gas mixtures.

Hastelloy-internals for corrosive gases

Optional contact pressure gauges for gas supply failure monitoring

Laboratory pressure control

Operating Temperature:-40ºF to 165ºF/-40ºC to 74ºC


  • Technical Parameters
  • Main feature
  • Operating range
Product Name
NAILOK single-stage semi-automatic changeover regulator
Inlet Pressure
Max. 300 bar
Outlet Pressure
200 psig
Diaphragm(regulator)
Hastelloy/ 316 stainless steel
Dimension
320x160x153 mm
Operating Temperature
-40ºF to 165ºF/-40ºC to 74ºC
Inlet & outlet
1/4'' F NPT
 Weight 2.2KG
 Optional Relief valve, hose, tube fitting
Series

PRM series
