Globe· Needle Valves

NB-SFF16

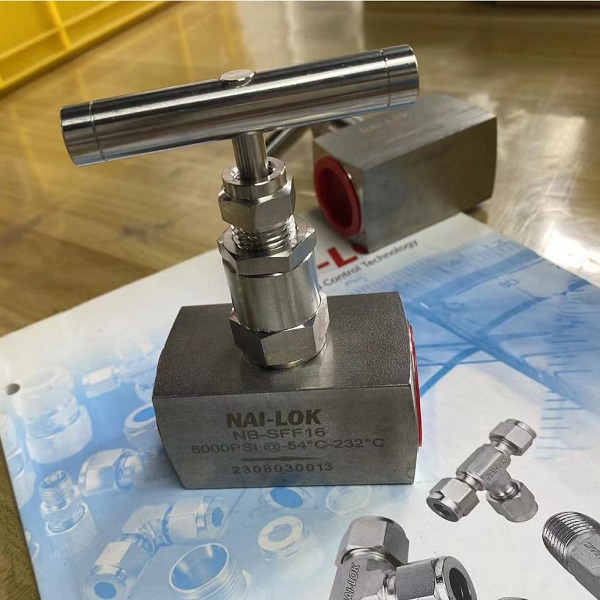

1'' NPT Female Thread SS316 High Pressure Oil and Gas Stainless Steel Forged Needle Valve

1'' NPT Female Thread SS316 High Pressure Oil and Gas Stainless Steel Forged Needle Valve


1. Maximum working pressure: 6000psig (414 bar)
2. Working temperature
PTFE: -65
ºFto 450ºF(-54 to°C 232°C)
PEEK: -65
ºFto 600ºF(-54 to°C 315°C)
3. Compact design
4. Leak-tight performance testing for every valve with nigtrogen at the maximum working pressure

  • Technical Parameters
  • Main feature
  • Operating range
Product Name
NAI-LOK Needle Valve
Size
1/4'', 1/8'',1/2",1''
Material
Stainless Steel(316)
Handle Black knob, Anodized aluminum, Stainless Steel
Working Pressure
6000PSI (414 bar)
Size
1/4'' to 1''
  Stem   316 Stainless Steel
  Packing   PTFE or PEEK
End Connections
Female NPT thread
