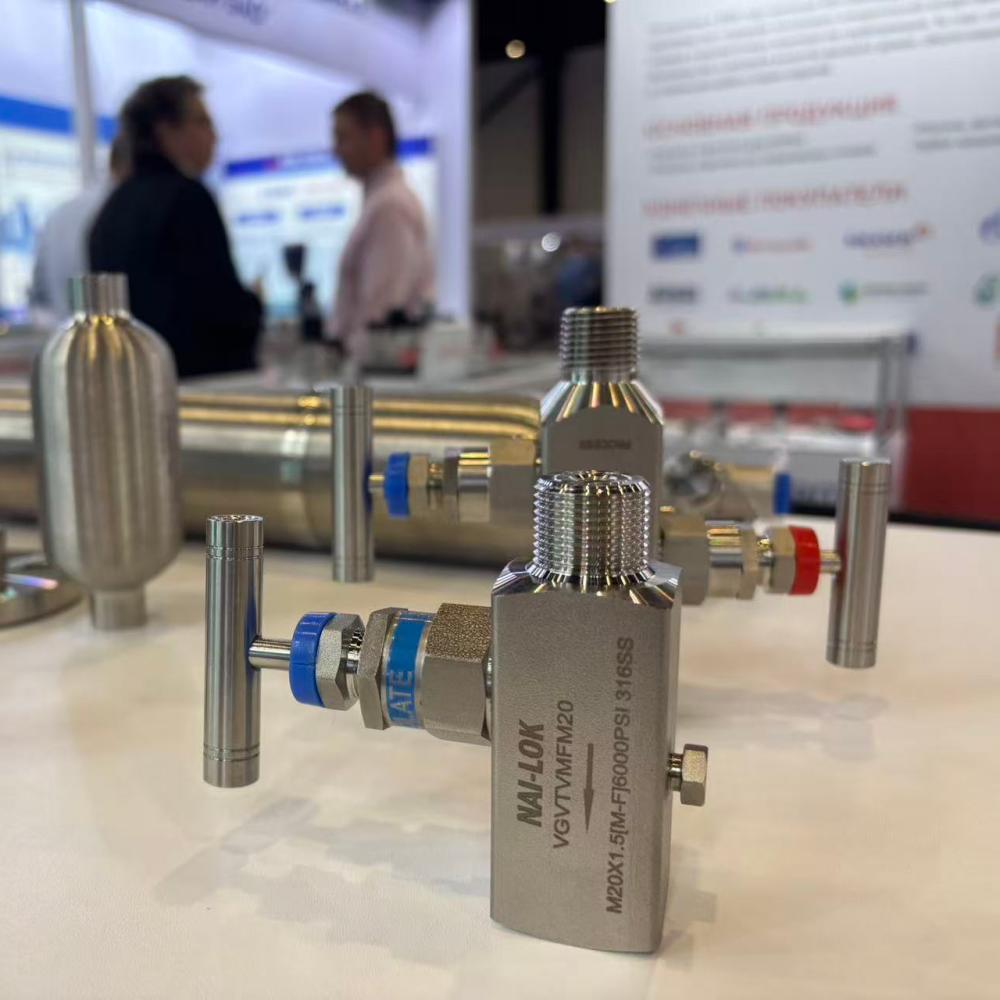

Stainless Steel 6000psi gauge valve male to female with vent port M6
Pressure rating up to 6000psi (413 bar ) @ 100° F (38°C ).
Temperature rating up to 449°F (232°C) with standard PTFE packing; up to 1,200°F (648°C) with Grafoil packing.
Standard 316 stainless steel , optional alloy 400, and alloy C276 construction.
Valves stem back seating against the bevelled edge of bonnet in fully open position prevents maximum leakage through bonned when packing fails.
100% factory tested.
- Technical Parameters
- Main feature
- Operating range
Product Name | Nai Lok Needle Valve Gauge Valve |
Size | 1/8'', 1/4'', 3/8'',1/2", 3/4",1'' ,M20x1.5 |
Material | stainless steel(316) as standard, optional for alloy |
Working Pressure | 6000PSI (414 bar) |
| Stem | 316 stainless steel |
| Packing | PTFE or Graphite |
End Connections | NAI-LOK tube fitting or BSP Thread |
