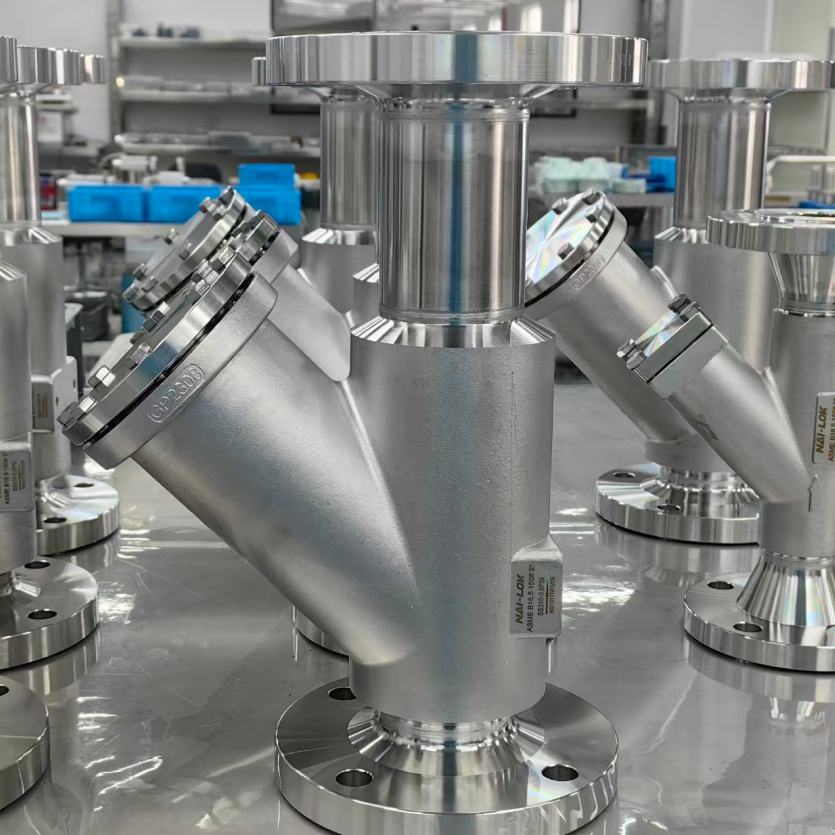

NAI-LOK 3" 150# EP Flange Y Type Non-Return Valve | Ultra High Purity, ASME B16.5, Electropolished SS316L
EP Grade for Ultra High Purity:Valve interior isElectropolished (EP)to an ultra-smooth surface, minimizing particle adhesion and bacterial growth to ensure fluid integrity in critical applications.
Certified Material & Construction:Manufactured from 316L Stainless Steel with full material traceability. Complies with ASME B16.5 and meets stringent industry standards for high-purity systems (e.g., SEMI, cGMP).
Sanitary Swing Check Design:Optimized swing check mechanism with minimal dead legs promotes full drainage and prevents fluid entrapment, crucial for preventing cross-contamination.
High-Cleanliness Packaging:Valves are cleaned, dried, and bagged in a controlled environment per industry standards (e.g., IEST, ASTM) to deliver particle-free.
- Technical Parameters
- Main feature
- Operating range
| Category | Specification |
|---|---|
| Product Type | Y Type Non-Return Valve |
| Brand | NAI-LOK |
| Size | 3" (Nominal Pipe Size) |
| Pressure Class | ASME B16.5 Class 150 |
| End Connection | RF Flanged (Raised Face) |
| Design & Finish | Surface Finish: Electropolished (EP) Ra Value: ≤ 10 μin (0.25 μm) or better |
| Pressure Rating | 150 PSIG @ 100°F (1.03 MPa @ 38°C) |
| Temperature Range | CF8M (SS316): -425°F to 1200°F (-254°C to 649°C) |
| Body Material | A351 CF8M (Stainless Steel 316) |
| Temperature Range | -20°F to 400°F (-29°C to 204°C) |
| Seat Material | Primary: PTFE (Encapsulated) / Alternative: Virgin PTFE |
| Face to Face | API 594 Short Pattern / ASME B16.10 |
| Test Standard | API 598 / ISO 5208 |
