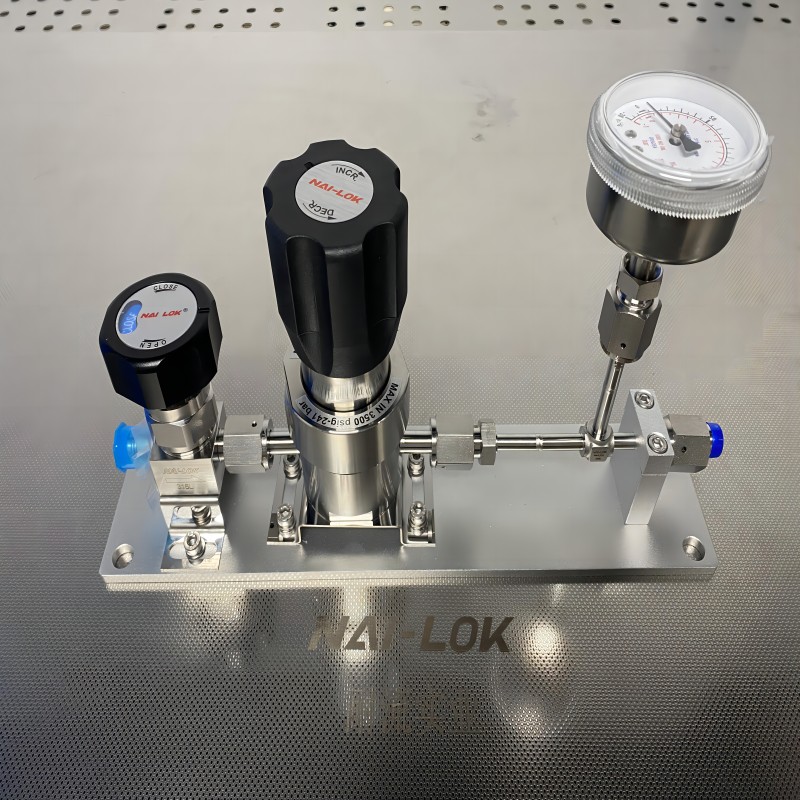

NAI-LOK UHP Gas Stick
Single stage.
For purity, inert, reactive, flammable and oxidizing gas and gas mixtures.
Hastelloy-internals for corrosive gases
Optional contact pressure gauges for gas supply failure monitoring
Laboratory pressure control
Operating Temperature：-40ºF to 165ºF/-40ºC to 74ºC
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Port Type: | Female NPT / OD |
| Size : | 1/4 in. |
| Ball valve : | One BV series ball valve |
| Inlet Pressure : | 4,000psig (276 bar) |
| Outlet Pressure Range: | 0 to 25psig (0 to 1.7 bar) 0 to 50psig (0 to 3.4 bar) 0 to 100psig (0 to 6.9 bar) 0 to 250psig (0 to 17.2 bar) 0 to 400psig (0 to 25.5 bar) |
| Panel material: | SS304 |
| Optional: | Relief valve, tube fittings |
