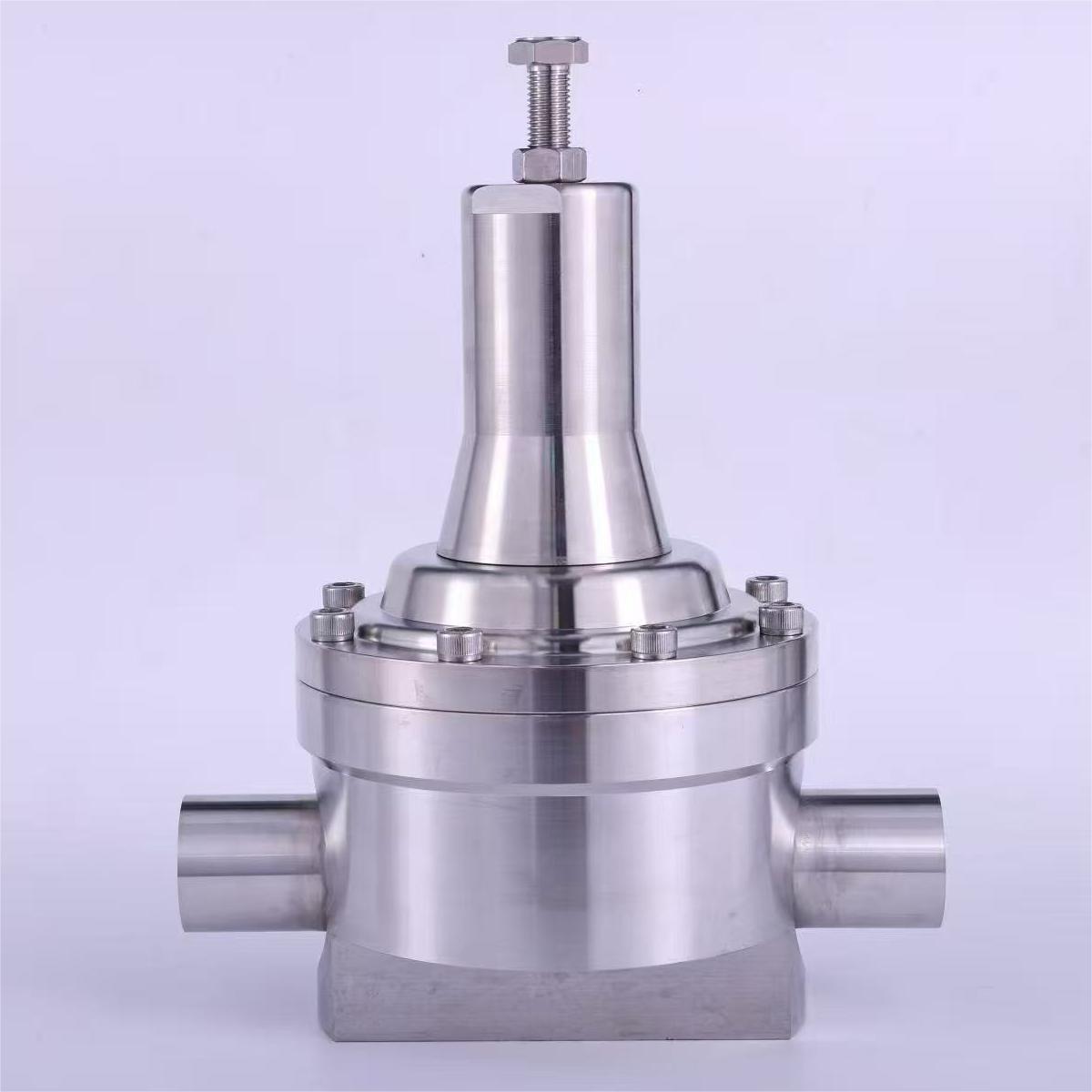

UHP EP Grade Two Inch high flow pressure regulator for ultra high purity gas application
Accurately regulates pressure up to 250 psig ( 17.2 bar) for spring load
High flow for pipeline application
316 Stainless steel body for corrosive gases
High ftlow up to 1400scm
Spring loaded handknob
Operating Temperature：-4ºF to 165ºF/-20ºC to 74ºC
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Port Type: | Female NPT |
| Size : | 2 in. |
| Port: | 2 ports |
| Inlet Pressure : | 5,00psig (34.5 bar) |
| Outlet Pressure Range: | 0 to 50psig (0 to 3.4 bar) 0 to 100psig (0 to 6.9 bar) 0 to 150psig (0 to 10.3 bar) |
| Series | DHG Series |
