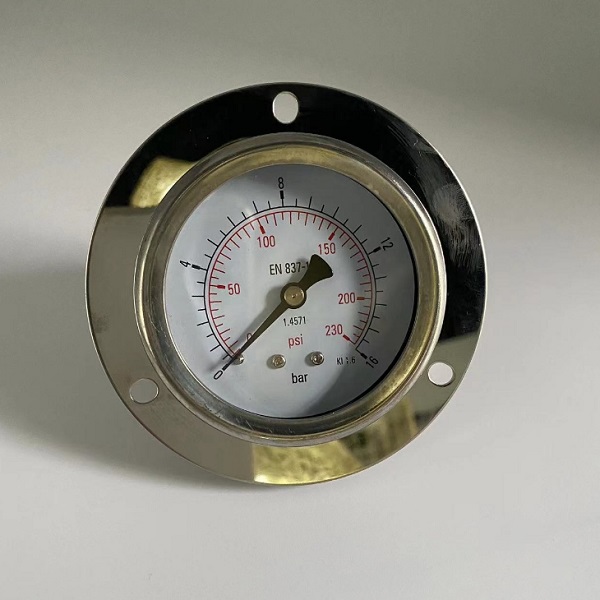

High-accuracy 316 Stainless steel Hydraulic & Gas Pressure Gauge Measuring Oil Gauge
- Technical Parameters
- Main feature
- Operating range
Product Name | Pressure gauge |
Material | Stainless steel 316 |
Dial diameter optional | 40/60/100mm |
Connector material | copper |
Screw thread size | 1/4, about 13mm; M14*1.5,about 14mm |
Accuracy class | 1.6 |
Mearsuring range | 0.1-60Mpa,customized range |
Outer size | 60mm |
Bourdon tube | phosphor bronze |
Connecting thread | 1/4NPT,1/8 NPT,1/4G |
Mounting pattern | Customized |
