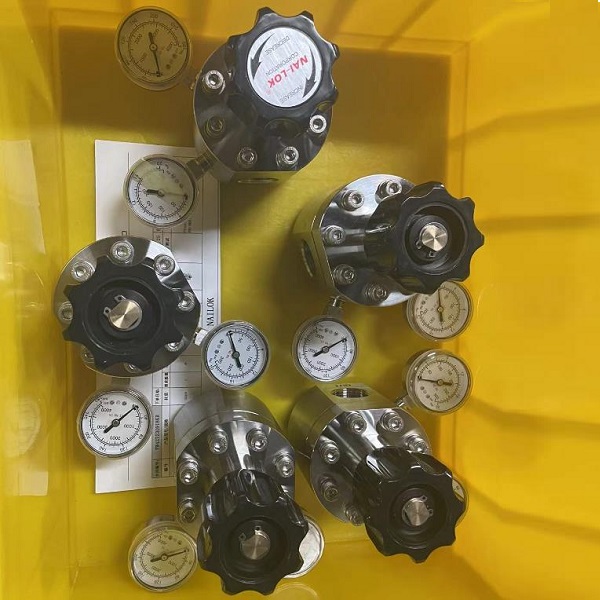

High Flow High Pressure Reducing Regulator Valve for CNG application
Accurately regulates pressure up to 1500 psig ( 103bar) for spring load
High flow for pipeline application
4 ports flexible configuration
Five outlet pressure ranges
Spring loaded handknob
Operating Temperature：-4ºF to 165ºF/-20ºC to 74ºC
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Port Type: | Female NPT |
| Size : | 1 in. |
| Port: | 3 ports / 4 ports |
| Inlet Pressure : | 3,000psig (207 bar); 500psig(34.5 bar) |
| Outlet Pressure Range: | 0 to 25psig (0 to 1.7 bar) 0 to 50psig (0 to 3.4 bar) 0 to 100psig (0 to 6.9 bar) 0 to 150psig (0 to 10.3 bar) 0 to 200psig (0 to 13.8 bar) |
| Series | NR61, NRH61 Series |
