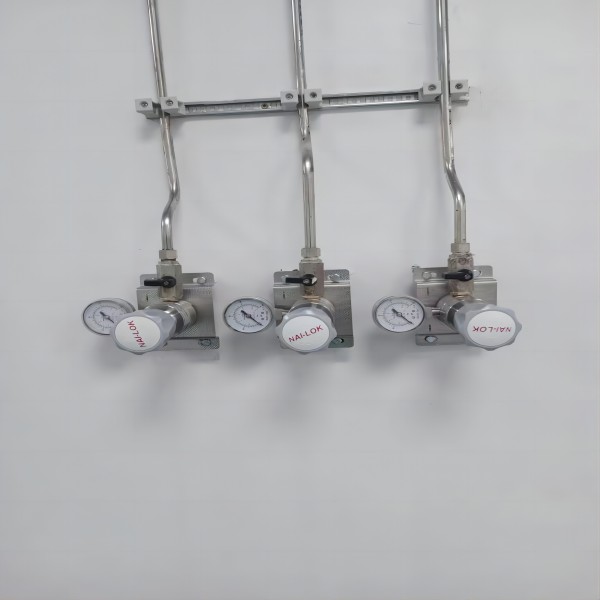

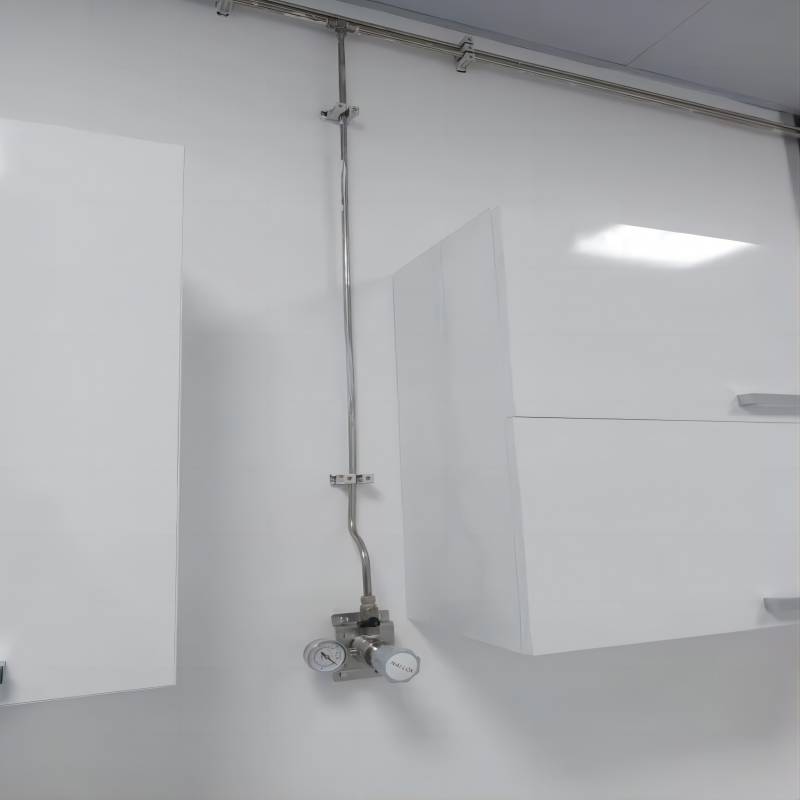

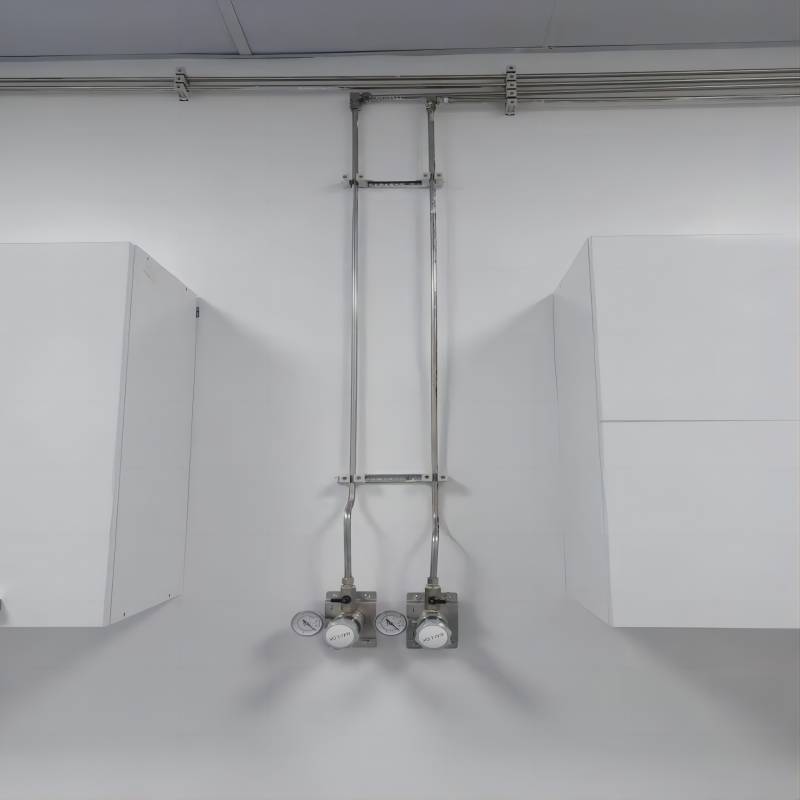

3 Ports High purity pressure line regulator 150 psi
Single stage.
For purity, inert, reactive, flammable and oxidizing gas and gas mixtures.
Hastelloy-internals for corrosive gases
Optional contact pressure gauges for gas supply failure monitoring
Laboratory pressure control
Operating Temperature：-40ºF to 165ºF/-40ºC to 74ºC
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Port Type: | Metal Face Seal |
| Size : | 1/4 in. |
| Ball valve : | One diaphragm valve |
| Inlet Pressure : | 4,000psig (276 bar) |
| Outlet Pressure Range: | 30 to 150psig (0 to 10.3 bar) |
| Panel material: | SS304 |
| Optional: | Welding fittings |
