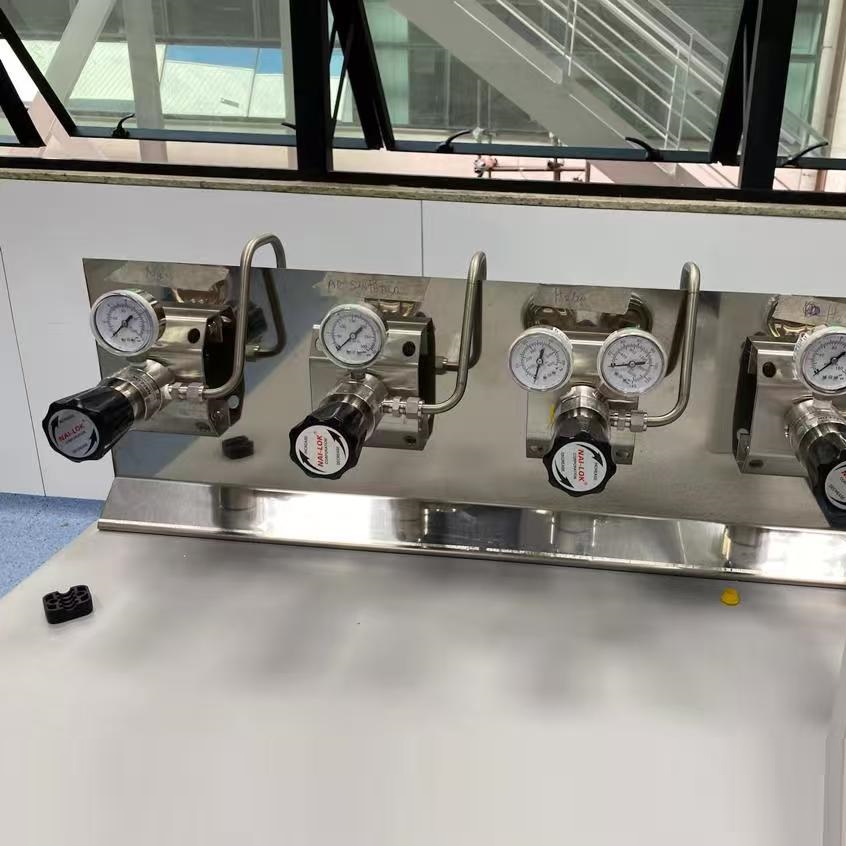

NAI-LOK NR11 Single Stage Stainless Steel Panel Regulator for Gas Control System
Maximun Inlet Pressure
3500 psig(241 bar)
Outlet Pressure
0-500psig(17.2 bar)
Design Proof Pressure
150% maximum rated pressure
Leakage
Internal: Bubble-tight
External:Design ro meet≤2×10-8atm cc/sec He
Operating Temperature
-40ºF to 165ºF/-40ºC to 74ºC
Flow CapactiyCV=0.06
- Technical Parameters
- Main feature
- Operating range
roduct Name | NR11 Cylinder Panel Regulator |
Size | 1/4'' Female NPT |
Material | SS316 |
Flow Capacity | Cv=0.06 |
Max Inlet Pressure | 3500PSI(241 bar) / 400PSI(27.6 bar) |
Outlet Pressure | 0-450PSI(0-31 bar) |
| Operating Temperature | -40°F to 165°F(-40°C to 74°C) |
| Leakage | Internal: Bubble-tight |
| Standard Optional | CGA, relief valve, pressure gauges,fittings |
