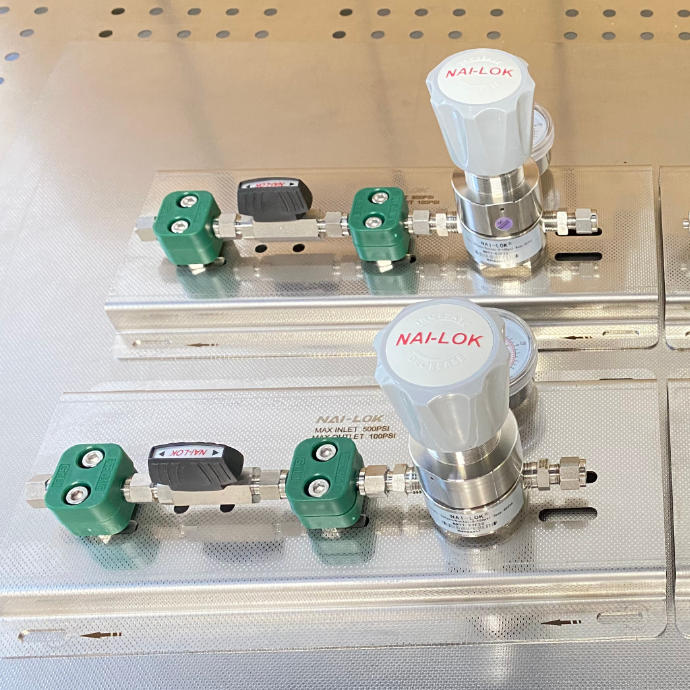

NAI-LOK PRM Panel Regulator with Low Pressure Ball Valves – Stainless Steel Precision Gas Control for Instrumentation Systems
Panel-mount regulator designfor easy integration into instrumentation panels
Low pressure ball valvesfor reliable shutoff and isolation
Stable outlet controlfor accurate gas delivery
316 stainless steel constructionensures durability and corrosion resistance
Multiple pressure ranges availablefor flexible applications
High-purity designsuitable for specialty gases and instrumentation systems
Compact and user-friendlyfor laboratory and field installations
Applications: Laboratory gas control, analytical instruments, gas distribution panels, oil & gas, hydrogen, and specialty gas systems
- Technical Parameters
- Main feature
- Operating range
| Item | Specification |
|---|---|
| Product Name | PRM Panel Regulator with BR Ball Valves |
| Brand | NAI-LOK |
| Type | Single Stage / Panel Mount Regulator |
| Material | Stainless Steel 316 |
| Mounting | Panel Mount |
| Inlet Connection | 1/4" NPT |
| Outlet Connection | 1/4" NPT with integrated ball valves |
| Max Inlet Pressure | 500psi |
| Outlet Pressure Range | 0–25 psi / 0–50 psi / 0–100 psi / 0–250 psi / 0-400 psi |
| Valve Type | BR Ball Valve |
| Leak Rate | ≤ 1 x 10⁻⁹ atm cc/sec He |
| Operating Temperature | -40°C to +74°C (-40°F to +165°F) |
| Cv Value | 0.06 |
| Applications | Instrumentation panels, laboratory gas supply, specialty gas distribution, research & testing |
