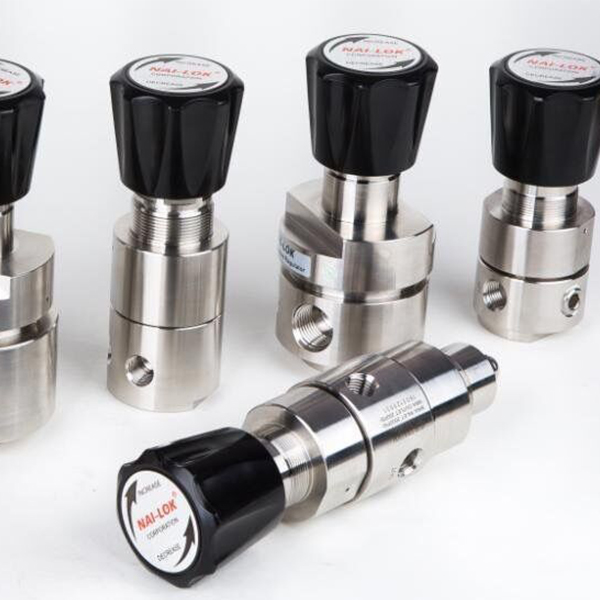

NAILOK Manufacturer 2 Stage Adjustable Pressure Regulator Inlet 3500PSI Dual Stage Gas Reducing Regulator
Specially designed to regulate high pressure gas to low pressure status.
Provide a continuous, accurate outlet pressure regardless of inlet pressure fluctuations.
Features a unique metal-to-metal diaphragm to body seal.
Diaphragms are convoluted for greater accuracy and sensitivity.
Available in chrome plated brass.
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel/ Chrome plated brass |
| Ports : | 1/4'' NPT |
| Port Type: | 4 ports/ 5 ports |
| Bonnet Material: | Stainless Steel/ Brass |
| Diaphragm: | Hastelloy/ 316 Stainless Steel(Standard) |
| Flow Capacity: | Cv=0.05 |
| Operating Temperature: | -40℉to 165℉(-40°C to 74°C) |
| Max Inlet Pressure : | 3,500psig (241 bar) |
| Outlet Pressure Range: | 0 to 25psig (0 to 1.7 bar) 0 to 50psig (0 to 3.4 bar) 0 to 100psig (0 to 6.9 bar) 0 to 150psig (0 to 10.3 bar) 0 to 250psig (0 to 17.2 bar) |
| Series | NR31 Series |
