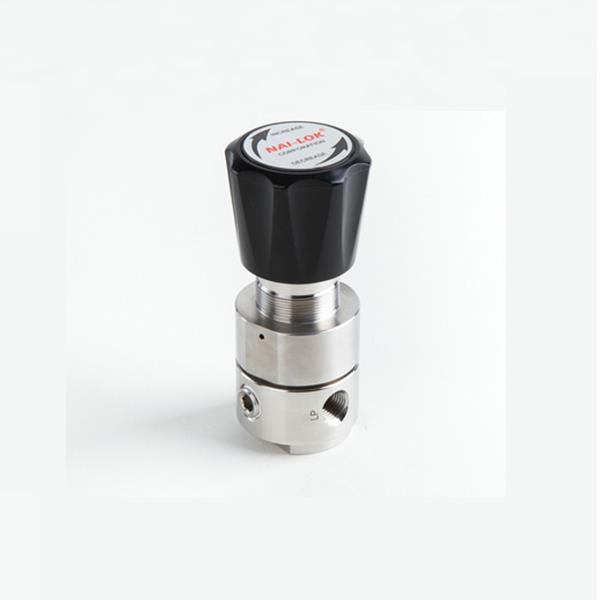

Professional Pressure Gas Reducing Regulator Argon Cylinder Pressure Regulator with Stailess Steel Diaphragm
Good protection against burst and corrosion due to diaphragm material stainless steel
6 ports flexible configuration
Panel mounting nut option
Available in chrome plated brass, alloy.
Purity max.6.0
Stable outlet pressure
Operating Temperature：-40ºF to 165ºF/-40ºC to 74ºC
- Technical Parameters
- Main feature
- Operating range
| Body Material: | 316 Stainless Steel |
| Port Type: | Female NPT |
| Size : | 1/4 in. |
| Port: | 3 / 4 /6 ports |
| Inlet Pressure : | 3,500psig (241 bar) |
| Flow Capacity: | Cv=0.06 |
| Outlet Pressure Range: | 0 to 25psig (0 to 1.7 bar) 0 to 50psig (0 to 3.4 bar) 0 to 100psig (0 to 6.9 bar) 0 to 250psig (0 to 17.2 bar) 0 to 450psig (0 to 27.5 bar) |
| Series | NR11 Series |
