Working Pressure Rating of 3/8 Inch Tube Fittings in Stainless Steel 316

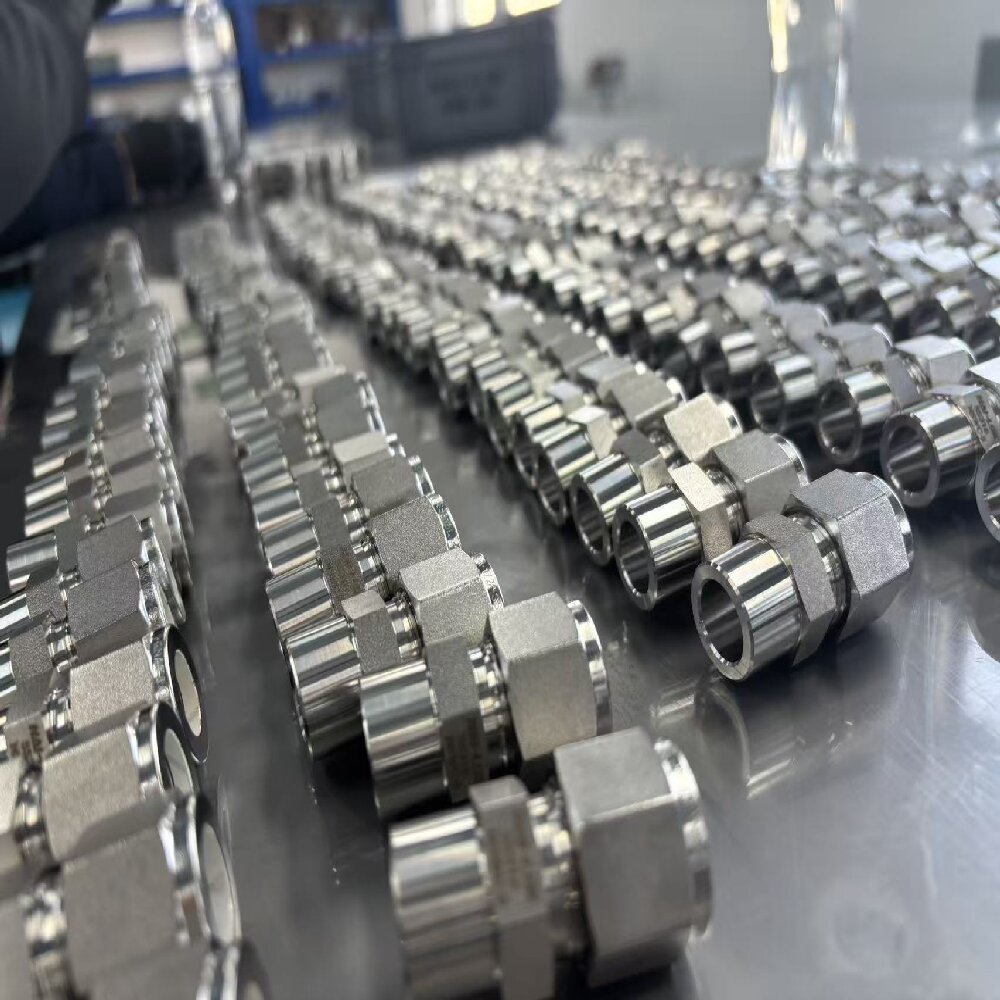

316 stainless steel tube fittings in 3/8 inch sizes are common for many piping systems as well as instrumentation systems when space is limited but pressure is still a concern. These Tube and pipe fitting can run into chemical lines, waste water treatment systems and even air or hydraulic control panels. Working pressure rating is not always a fixed number. There are many variables such as wall thickness of the tube, style of fitting and even operating temperature. What may work on a clean indoor compressor line may fail you in a hot or corrosive situation. That is why it's important to know your pressure rating so you don't experience leaks, loose joints or premature wear with normal use.

How wall thickness affects rating?

Wall thickness plays a big role in how much pressure a 3/8 inch 316 stainless tube fitting can safely handle. While the outside diameter stays the same the inside volume changes with thicker or thinner wall. The thicker wall allows a stronger Tube weld fittings to resist the force of the internal pressure pushing against it. Thin wall will flex and distort easier when subjected to pressure. Think of it like drinking straws. You can easily squish or distort the thin straw but the thicker one will hold its shape better even when force is applied. A similar concept applies to tubing in real systems. Typical wall thicknesses you will find on 3/8 inch tubing would be 0.035 inch wall, 0.049 inch wall and less commonly 0.065 inch wall. 0.035 inch wall would normally be used on low to medium pressure line such as instrument air or non-demanding water systems. If the pressure will stay mostly the same and isn't very high go right ahead. 0.049 wall is much stronger and the standard choice when hydraulic control lines or systems will see higher pressure swings. 0.065 wall would be used when you need that extra strength margin built into systems such as chemical injection lines or harsher industrial setups. On job sites, I've seen this happen plenty of times: swap out a thin-walled tube for a thicker one using the same fitting body, and suddenly a leak at the ferrule contact either stops or is drastically reduced. The thicker tube simply doesn't distort as easily when tightening up the Tube fittings . Temperature plays a factor as well. As temperature rises the metal softens slightly and can handle less pressure. Just something to keep in mind if dealing with hot fluid systems you might need to go to a heavier wall even if the pressure seems like it would be safe on paper. Make sure you get the correct wall thickness to go along with the type of fitting you are using. Compression fittings work by having the tube thick enough to compress onto the ferrule but not so thin that it collapses. When using a thin wall the ferrule can bite into the tube so much that it bends the tube and will eventually cause leaks. Thicker wall means stronger and better stable seal with a better safety margin for those times when pressure and/or temperature fluctuate.

Comparison with brass and alloy fittings

The first thing that can be noted when comparing stainless steel 316 tube fittings to brass and other alloy fittings is that of strength under pressure. Stainless steel 316 is capable of bigger working pressure particularly in smaller sizes such as 3/8 inch tubing. It maintains its form even with the pressure spikes or vibrations in the system. Fittings made of brass are softer, on the other hand. They perform well at low to medium pressure lines such as water supply or simple air systems but tend to deform quicker with an increase in pressure or too tightening of fittings. The other aspect is corrosion resistance. Stainless steel 316 is effective in wet, salty or chemical conditions. This is why it can commonly be found in marine systems or chemical dosing lines. Brass can be used with clean water and in the air, however, in the severe chemical or humid environment it might begin to corrode or lose its color with time. In between are some alloy fittings, which are stronger than brass, yet not as resistant as stainless steel in the long term. I have experienced a mere distinction in actual maintenance work when upgrading systems. A manufacturing plant with brass compression fittings in a moist workshop experienced small leakages after a few months. With the change to stainless steel 316 fitting, the leak reports reduced significantly, particularly in those lines that had vibration caused by pumps. The fittings remained tight and stable during a number of pressure cycles. The decision also includes cost. Brass fittings are more economical and replaceable, thus used in non critical systems. Stainless steel is more expensive, initially, but tends to be more durable and requires less maintenance. When the price and strength are to be balanced, alloy fittings are occasionally used. Installation feels different. Brass is softer, and therefore easier to tighten, but it is also easier to over-tighten and break. Stainless steel requires more attention when assembling, and once properly installed, it can withstand a load better. Simply put, brass is used when the system is simple and low risk, alloy is used when the system needs to be mid-level, and when pressure, vibration, or corrosion are issues, use stainless steel 316.

Safety factors for high pressure gas lines

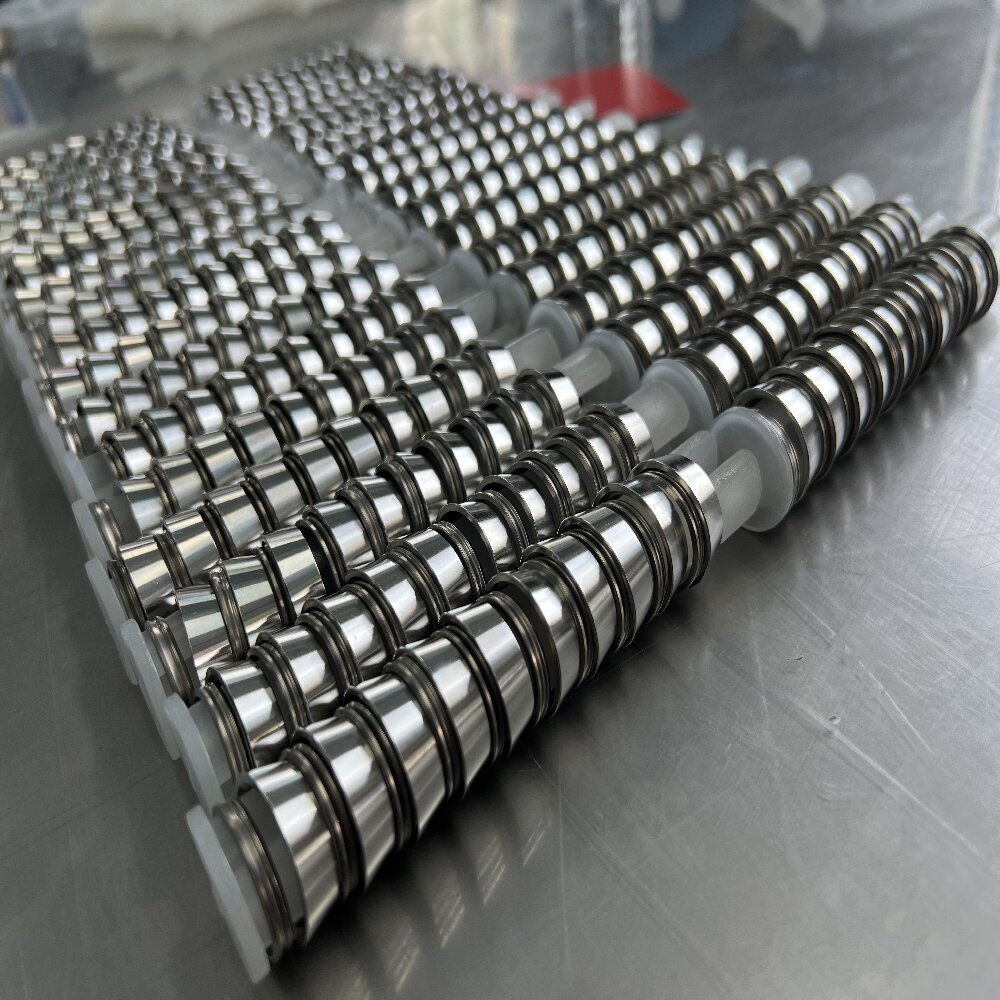

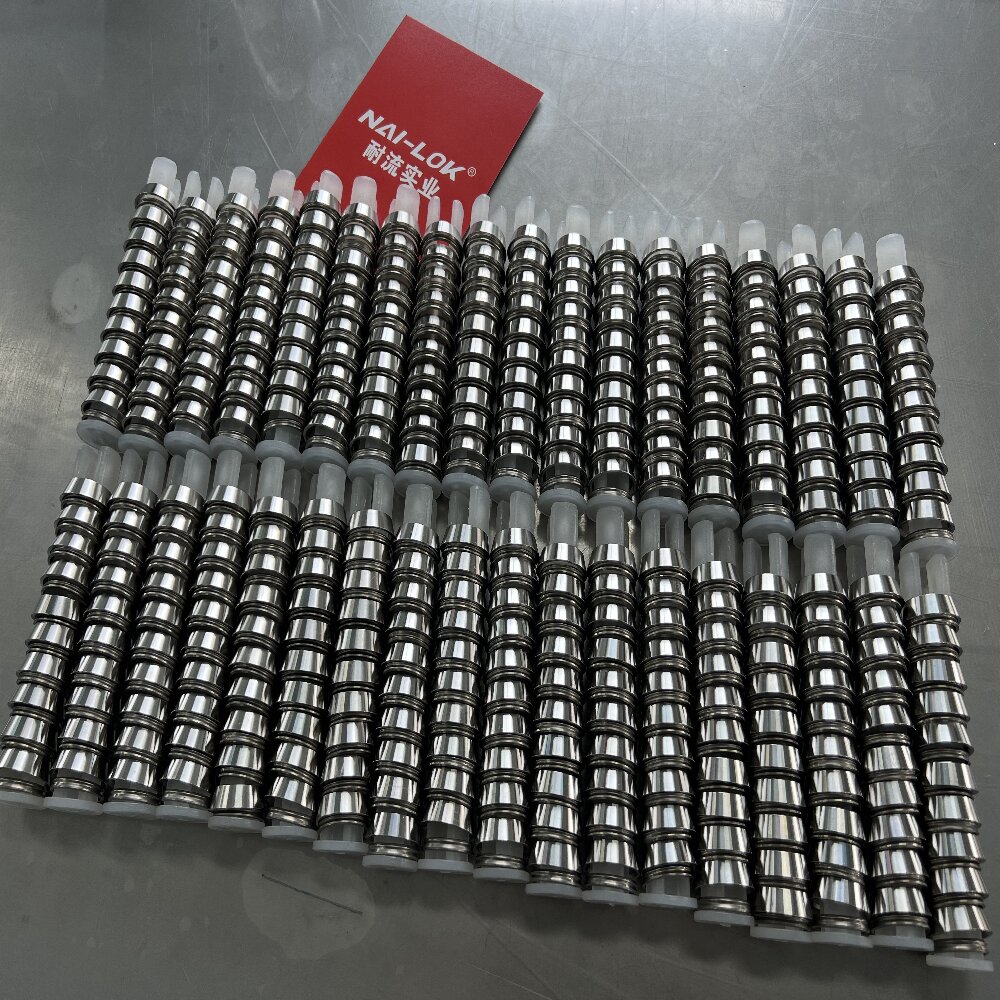

There is a special attention required to high pressure gas lines, since gas does not act like liquid. Once the pressure is built up, the gas may rapidly expand and put pressure on all the joints, fittings, and bends. A minor flaw in a 3/8 inch stainless steel 316 tube fitting system may become a leak in the long run. The selection of the appropriate pressure rating of each component of the line is one of the primary safety considerations. The fitting body can be stout, but the wall of the tube, the ferrule and even the nut must be all the same pressure. When one component is less strong, then it is the initial failure point. In practice I have observed systems in which systems were fine in fittings, but a thin-wall tube with an incompatible fit resulted in slow leakage of the gas after a number of pressure cycles. Another important factor is good tightening. The over-tightening may spoil the ferrule and cut excessively into the tube. Under-tightening may create a small hole that will not be noticed unless the pressure increases. It is a field practice to tighten by hand, followed by the recommended number of turns with a wrench. This may sound easy to do, but a lot of leaks are caused by not taking this step. Vibration is also important in gas lines. Even nearby machines, compressors, pumps and so on can shake the tubing a little. This movement may also loosen fittings when it is not well supported over a period of time. Proper clamps or supports can be added to maintain the line in place particularly during long routes. Changes in temperature are also to be monitored. As the gas becomes hot, the pressure within the line may suddenly increase. Stainless steel 316 is a material that can withstand heat better than most other materials, but heat cycles still exert stress on joints. This is why safety margins are always set higher than the normal working pressure but not at the limit. The other simple but valuable habit is clean installation. On the ends of the tubes dust, metal chips or oil can prevent a proper seal. A single speck of dust can form a leakage channel in case the pressure of gas grows. Strong fittings are not the only safest systems in real field use. They are based on the correspondence of the right tube, the correct installation procedure, and the consistent support throughout the entire line.
