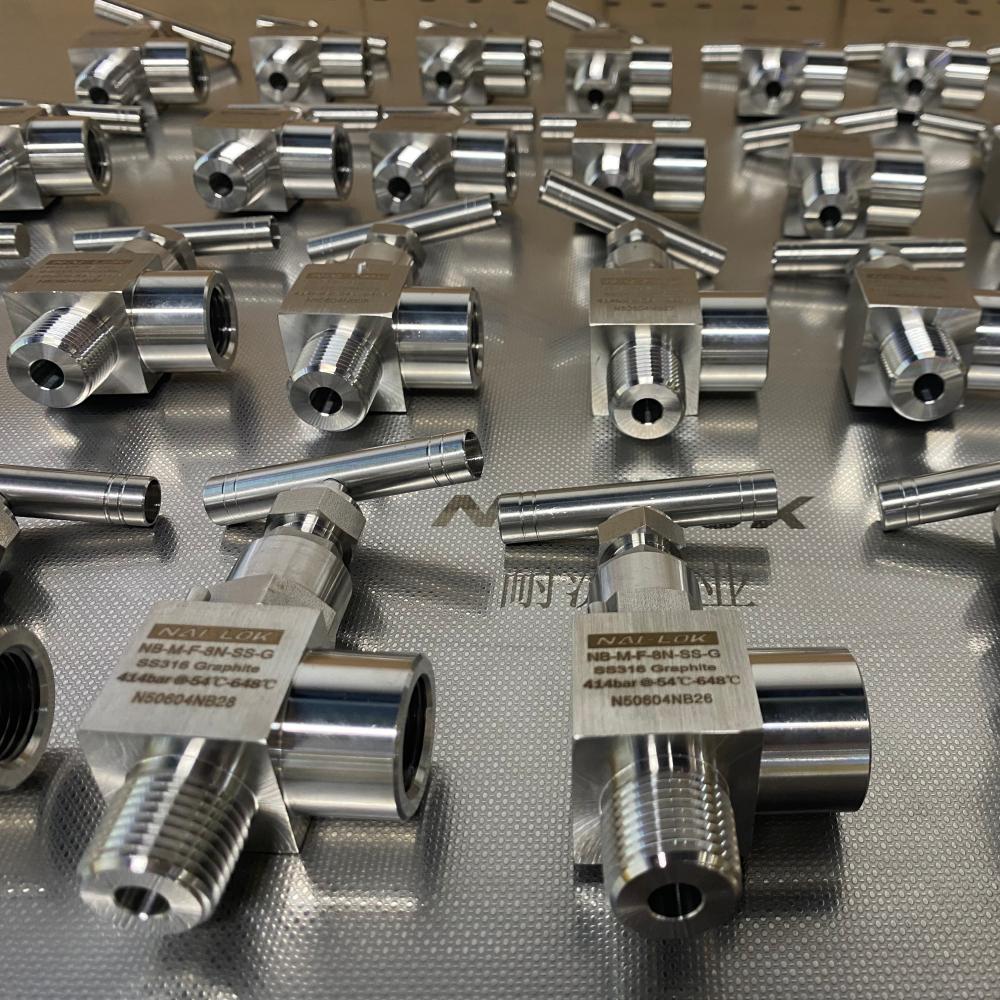

Angle Needle Valve 1/2 Female to Male NPT 6000psi Hard Metal Seat
1. Maximum working pressure: 6000psig (414 bar)
2. Working temperature
PTFE: -65ºFto 450ºF(-54 to°C 232°C)
PEEK: -65ºFto 600ºF(-54 to°C 315°C)
3. Compact design
4. Leak-tight performance testing for every valve with nigtrogen at the maximum working pressure
PTFE: -65ºFto 450ºF(-54 to°C 232°C)
PEEK: -65ºFto 600ºF(-54 to°C 315°C)
3. Compact design
4. Leak-tight performance testing for every valve with nigtrogen at the maximum working pressure
- Technical Parameters
- Main feature
- Operating range
Product Name | NAI-LOK NG Series Needle Valve |
Size | 1/4'', 3/8'',1/2" |
Material | Stainless Steel(316) |
| Handle | Black knob, Anodized aluminum, Stainless Steel |
Working Pressure | 6000PSI (414 bar) |
Size | 1/4'' to 1/2'' |
| Stem | 316 Stainless Steel |
| Packing | PTFE or PEEK |
End Connections | NAI-LOK tube fitting or NPT thread |
