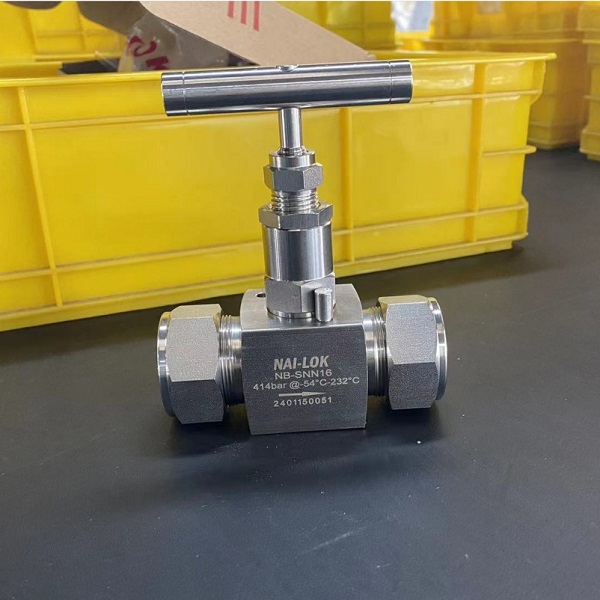

NAI-LOK 1 Inch High Pressure Stainless Steel Screwed Bonnet Needle Valve Double Ferrule Ends

NAI-LOK 1 Inch High Pressure Stainless Steel Screwed Bonnet Needle Valve Double Ferrule Ends


1. Maximum working pressure: 6000psig (414 bar)
2. Working temperature
PTFE: -65
ºFto 450ºF(-54 to°C 232°C)
PEEK: -65
ºFto 600ºF(-54 to°C 315°C)
3. Compact design
4. Leak-tight performance testing for every valve with nigtrogen at the maximum working pressure

  • Technical Parameters
  • Main feature
  • Operating range
Product Name
NAI-LOK Needle Valve
Size
1/4'', 1/8'',1/2",1''
Material
Stainless Steel(316)
Handle Black knob, Anodized aluminum, Stainless Steel
Working Pressure
6000PSI (414 bar)
Size
1/4'' to 1''
  Stem   316 Stainless Steel
  Packing   PTFE or PEEK
End Connections
Tube OD, Female NPT
